The Icron USB Rover 1300 is a 1 Port USB Extender which provides all the
flexibility of extended range USB in a ready-to-use package. The Rover 1300
provides extension for a single Full-Speed USB device connection, such as a
webcam, printer, scanner, CD/DVD drive, Hardrive, or Flash drive. This USB
extender does not support Low-Speed device connections such as USB keyboards or
mice, and it does not support USB hub connections to the remote end.
Icron's Rover products operate over standard Category 5 UTP cable (the same
wiring used in Ethernet). The technology behind this USB extender product,
ExtremeUSB, requires no additional software for either the computer or the
target devices.
USB Rover products are composed of two separate units: the Local Extender (LEX)
and the Remote Extender (REX). Conventional USB cables are used to connect the
LEX unit to the host computer and to connect the remote USB device to the REX
unit. Category 5 UTP cabling is used to connect the LEX and REX units over a
distance of up to 100 m/328 ft. The USB Rover 1300 is powered from USB and
delivers enough power at the remote unit to drive most USB webcams.

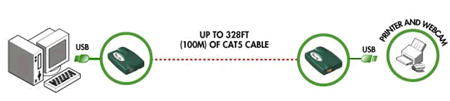

Icron USB Extender Application Diagram
Icron Rover 1300 USB Extender Features:
- ExtremeUSB technology extends the range of USB up to 100 meters using
Category 5 cable.
- Requires no external power adapter
- Extends power and data over the same Category 5 cable
- Provides support for a single full-speed (12 Mb/s) USB device
- System includes local and remote units, USB cable and user guide
Icron 00-00067 Specifications:
| Mechanical |
Local Unit |
Remote Unit |
| Height |
1.2 in. (30 mm.) |
1.2 in. (30 mm.) |
| Width |
2.8 in. (70 mm.) |
2.8 in. (70 mm.) |
| Depth |
4.0 in. (100 mm.) |
4.0 in. (100 mm.) |
| Weight |
0.2 lb. (0.1 kg.) |
0.2 lb. (0.1 kg.) |
| Shipping Weight |
0.8 lb.
(0.4 kg.) |
| Environmental |
|
| Temperature Range |
4°C to 40°C |
| USB Power |
|
| Required at LEX |
5V DC @ 500
mA |
| Available at REX |
(to USB
device) 5V DC @ 300 mA |
| LEX USB Connector |
|
| Upstream |
1 x USB Type B |
| Downstream |
1 x RJ-45 |
| REX USB Connector |
|
| Upstream |
1 x RJ-45 |
| Downstream |
1 x USB
Type A |
| USB Hub Support |
|
| Above LEX |
up to 5
hubs |
| Below REX |
None |
| USB Device Support |
1 x full
speed device (12 Mb/s) |
| Range (over Category 5 UTP cable) |
330 ft.
(100 meters) |
| USB connection cable (included) |
6.6 ft (2
meters) |
