00-00307 - Icron EL5100 DVI + USB 2.0 KVM Extender, 330ft
00-00307
Save $136.00
Discontinued
Replaced by: Icron EL5353 (00-00381)
Alternative options: Contact Us
The Icron EL5100 KVM Extender lets you place a DVI USB computer up to 100m (330ft) away from the work area, connected with a single inexpensive Cat 5e (or better) cable. The system supports Uncompressed DVI HD video and USB 2.0 (up to 30Mbps) suitable for video applications in conjunction with keyboards, mice, flash drives or other USB 2.0 and 1.1 devices.
Icron EL5100 Features- Remote Desktop: Increases IT security while improving PC provisioning and maintenance.
- Full HD Video: Uncompressed 1920 x 1200 resolution, 24-bit color depth (less than 1ms video latency).
- Long Distance: 100m (330 ft) over single solid core Cat 5e cable.
- USB 2.0 Support: All device types supporting up to 30Mbps. Recommended with keyboard, mouse, flash drive, printer, USB 1.1 web camera and other USB devices which require moderate amounts of bandwidth.
- Installation Ease: Utilizes a single Cat 5e (or better) cable for desktop extension simplifying installation.
- ExtremeUSB suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux - Mounting Kit: allows units to be mounted to walls, desks or trays for 19" racks.
- 2-year warranty
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux
Icron EL5100 Package Contents: Local Extender, Remote Extender, USB cable, DVI cable, Quick Start Guide, Two international power adapters, 2-year warranty

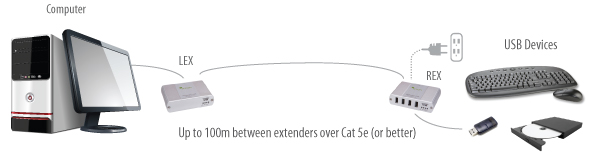

Icron EL5100 Diagram
Icron EL5100 Specifications
| Mechanical | |
| LEX (Local Extender) | 4.4" x 6.9" x 1.18" (112mm x 175mm x 30mm) |
| REX (Remote Extender) | 4.4" x 6.9" x 1.18" (112mm x 175mm x 30mm) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| LEX (Local Extender) | |
| Video Connector | 1 x DVI-D Video Input (24-pin connector) |
| USB Connector | 1 x USB 2.0 Type B Receptacle |
| Power | 5V DC, 3A DC (15W) |
| REX (Remote Extender) | |
| Video Connector | 1 x DVI-D Video Output (24-pin connector) |
| USB Connector | 3 x USB Type A Receptacles |
| Power | 5V DC, 3A DC (15W) |
| Compliance | |
| EMC | FCC (Class A), CE, ICES-003 |
| Compliance | RoHS2 (CE) |
| HDCP | Not supported. |
| Range | |
| Reach | 330 ft (100m) at full resolution |
| Interconnection Cable | RJ45 connector supporting solid core Cat 5e (or better) cable. |
| Recommended Interconnection Cable | Solid core Cat 6 is recommended for best results. |
