Icron EL5353 DVI + USB 2.0 CAT5 KVM Extender, 330ft
00-00381
Save $192.39
Model: DVI (1080p) + USB 2.0
The Icron EL5353 (00-00381) KVM Extender System features the latest and most robust HD video and USB extension technology from Icron Technologies. The EL5353 lets you place a computer up to 100m (330 ft) away from a workstation using a single CAT 5e/6/7 cable. The system supports full HD video and USB 2.0, providing the ability to control keyboards, mice, flash drives, audio peripherals and other USB 2.0 and 1.1 devices.

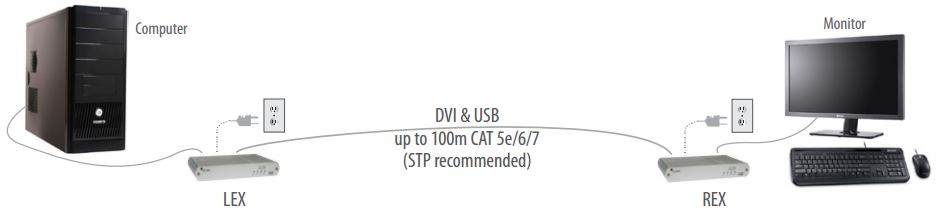

Icron EL5353 (00-00381) Application Diagram
Icron EL5353 Features & Benefits
- Point-to-point video and USB extension up to 100m (330ft) over a single CAT 5e/6/7 cable
- Full HD Video: Uncompressed 1920 x 1200 resolution, 24-bit color depth (less than 1ms video latency).
- Long Distance: 100m (330 ft) over single solid core Cat 5e cable.
- USB 2.0 Support: All device types supporting up to 40Mbps. Recommended with keyboard, mouse, flash drive, printer, USB 1.1 web camera and other USB devices which require moderate amounts of bandwidth.
- Installation Ease: Utilizes a single Cat 5e (or better) cable for desktop extension simplifying installation.
- ExtremeUSB suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux - Mounting Kit: allows units to be mounted to walls, desks or trays for 19" racks.
- 2-year warranty
EL5353 (00-00381) Package Contents
- (1) Icron EL5353 Transmitter (LEX)
- (1) Icron EL5353 Receiver (REX)
- (1) 6ft DVI cable
- (1) 6ft / 2m USB 2.0 Type-A to Type-B Cable
- (2) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 2-Year Standard Warranty
EL5353 Resources
Icron EL5353 Datasheet (PDF)
Icron EL5353 Manual (PDF)
Icron EL5353 Quick Start Guide (PDF)
Icron EL5353 (00-00381) Specifications
| Mechanical | |
| LEX (Local Extender) | 4.4" x 6.9" x 1.2" (112mm x 175mm x 30mm) |
| REX (Remote Extender) | 4.4" x 6.9" x 1.2" (112mm x 175mm x 30mm) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| LEX (Local Extender) | |
| Video Connector | 1 x DVI-D Video Input (24-pin connector) |
| USB Connector | 1 x USB 2.0 Type B Receptacle |
| Link | 1 x RJ45 |
| Power | 5V DC, 3A DC (15W) |
| REX (Remote Extender) | |
| Video Connector | 1 x DVI-D Video Output (24-pin connector) |
| USB Connector | 3 x USB Type A Receptacles |
| Link | 1 x RJ45 |
| Power | 5V DC, 3A DC (15W) |
| Compliance | |
| EMC | FCC (Class A), CE, ICES-003 |
| Compliance | RoHS2 (CE) |
| HDCP | Not supported. |
| Range | |
| Reach | 330 ft (100m) at full resolution |
| Interconnection Cable | RJ45 connector supporting solid core Cat 5e (or better) cable. |
| Recommended Interconnection Cable | Solid core Cat 6 is recommended for best results. |
This unit is the recommended replacement for the Icron EL5100 (00-00307)
Question: What frame rate is possible at 1920x1200?
Answer: Thank you for your inquiry,
The Icron EL5353 (pn: 00-00381) supports up to 1920x1200 @ 60Hz.
Answer: Thank you for your inquiry,
The Icron EL5353 (pn: 00-00381) supports up to 1920x1200 @ 60Hz.
