Minicom Smart IP Link Remote KVM IP Access



Please note, the Minicom Smart IP 0SU21032 is discontinued. For replacement or upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654.

Hardware remote KVM IP access for single or multiple computers
The Smart IP Link is an economical, hardware-based, remote KVM access solution. It is uniquely tailored for users and IT professionals who wish to add a remote access link to their computers or servers at a minimal investment, without having to compromise on security, quality and functionality.

With the Smart IP Link you can easily and securely manage a single computer or dozens of servers, from any location using standard LAN, WAN or Internet connections.

The Smart IP Link offers a wealth of features including highest security standards;128 bit SSL encryption, Java based operation as well as remote control of different serial devices, superior video and mouse synchronization and user- friendly functionality - all for an unrivaled price-performance ratio.

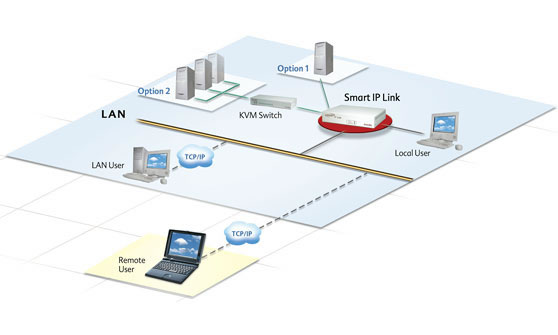

Technical Diagram

Features and Benefits
  • Add-on Remote KVM access to existing computers and KVM Switches
  • Remote Serial Control - power management, routers & other serial devices
  • Highest Security Standards - data encryption based on 128-bit SSL, operating with Java
  • BIOS level access - independent of Operating System
  • Multiple Operating System Support
  • Browser based - user friendly, no client software needed
  • Universal Compatibility - compatible with Minicom's product lines as well as most other major KVM switching systems
  • 3 Years Warranty
Technical Specifications
Operating systems Host Computer - Win 3.1, 9X, 2000, XP, NT4, 2003 Server, Dos, Novell 3.12 - 6, Linux
Client Computer - Win 9X, 2000, XP, NT4, 2003 Server, Linux, Mac, 10X
Internet browser with full Java support
Resolution Host Computer - Up to 1280x1024 @75Hz
Client Computer - Recommended resolution should be higher than resolution on local computer
Unit to local KVM connection Screen - HDD15, Keyboard/Mouse - MiniDin6
Unit to computer / switch connection 3 in 1 Cable 1.8m (supplied with system)
Video and Mouse Synchronization Both auto and manual modes
Connections Ethernet - RJ45
Serial DB9 10/100 Mbit/sec auto sensing
Weight Product - 1.1 Kg / 2.42 lb
Shipping - 2.35 Kg / 5.17 lb
Dimensions Product - 43Hx175Dx213Wmm / 1.69Hx6.89Dx8.38W"
Shipping - 115Hx255Dx350Wmm / 4.52Hx10.0Dx13.78W"
Power supply Internal Switching 85 - 265 VAC 50 / 60 Hz
Operating Temperature 0C to 40C/32 to 104F
Warranty 3 years
