Minicom DXUIP User Station

0SU60004A

Discontinued
For upgrade or replacement options: Contact Us

The Minicom 0SU60004 is a DX IP User Unit for the DX matrix system.  The Minicom DX system gives you a highly secure, integrated, flexible and supremely scalable solution for 24x7 BIOS-level control and management of high-density mission critical server environments.  The DXU IP user unit enables remote digital KVM/IP capability from anywhere in the world over the LAN or WAN supporting 128-bit SSL encryption.

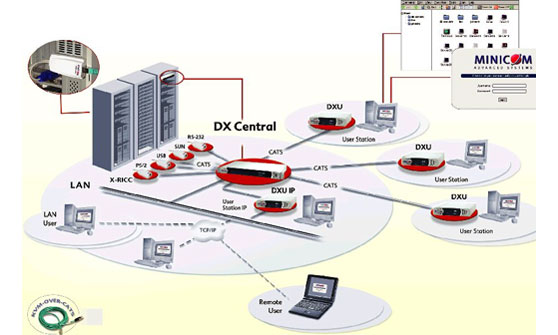

Minicom DX Matrix System Application Diagram
Minicom DX Matrix System Application Diagram

Minicom DXU IP Specification:

Mechanical
Height 1.6 in. (4 cm.)
Width 11 in. (27 cm.)
Depth17 in. (43.2 cm.)
Rack MountableYes
Power
Consumption100 - 250 VAC 50/60 Hz
Cables/Connectors
SystemRJ45
Local Console & CPUKVM + Serial
VideoHDD15
Keyboard/MouseMiniDin6
Serial2 X DB9
Power2XUSB (Future Application)
LANRJ45
