Minicom 4-Port Cat5 VGA Splitter Central Unit with Audio

0VS22009

$272.00

Discontinued
Recommended replacement: Aten VS1204T
Alternative options: Contact Us

The Minicom 0VS22009 is a 4 Port UTP VGA Video Splitter central unit with Audio which simultaneously broadcasts, in real-time, video images to multiple remote screens. Using advanced CAT5 cable technology video images can be broadcast to distances of up to 110m/360ft. Cascaded it can broadcast to dozens of screens simultaneously.  The CAT5 VGA Splitter is the best solution for places where there is a need for sharing of information, in real-time, at multiple locations. For example: corporate showrooms, banks/stock exchanges, trade shows, training centers, train/bus stations and airports.

Note:  The UTP VGA video splitter remote units are sold separately.

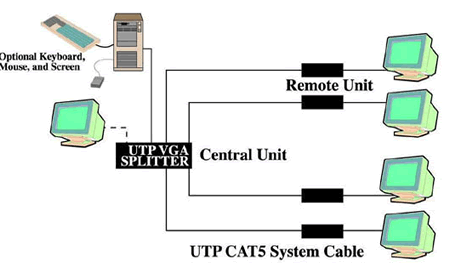

Minicom Cat5 UTP Video Splitter Application Diagram
Minicom Cat5 UTP Video Splitter Application Diagram

Minicom 0VS22009 Features:

  • Broadcast real-time video to multiple display locations
  • Advanced CAT5 technology - low density cabling that is easy to install
  • Broadcast to distances of up to 110m/360ft
  • Pure hardware solution - no software conflicts
  • Supports high resolution video - 1280x1024 @75 Hz
  • Sturdy metal casing

Minicom 0VS22009 Specifications:

Mechanical
Height 1.61 in. (41 mm)
Width 7.78 in. (197 mm.)
Depth 4.65 in. (118 mm.)
Weight 1 lb. (0.45 kg.)
Environmental
Operating Temperature  0° C to 40° C/32° F to 104° F
Storage Temperature  -40° C to 40° C/-40° F to 104° F
Power 230V/120V 9V AC
System Requirements
Computer  IBM, (SUN, MAC with Video convertors) and their 100% compatibles
Video VGA, SVGA, XGA, and Monochrome
Video
Video Signal Red, Green, Blue; 0.7Vp-p/75 Ohm positive
Resolution 1280x1024 @75Hz
Horizontal Sync  positive/negative
Vertical Sync positive/negative
Impedance 75 Ohm
Transmitting Distance 110m / 360ft
Support Composite Sync, Sync on Green, Separate HV Sync
Cable & Connectors CAT5 UTP Cable; 2x4x24 AWG; RJ45
