Minicom Digital Signage Vision 3000 8-Port Broadcaster

DSV3K-B8

$910.00

Discontinued
Replaced by:
Recommended replacement: Aten VS1508T
Alternative options: Contact Us

The Minicom Digital Signage manufactured by Kramer Electronics DSV3K-B8 is an 8-port broadcaster unit for the DS Vision 3000 digital signage solution.

The DS Vision 3000 narrowcasts high-definition video and stereo-audio from a single player, over CATx cable, to multiple plasma/LCD screens located up to 600m/2000ft away. Combined with full serial command, the DS Vision 3000 is the ultimate solution for controlling and delivering real-time multimedia content.  This digital signage solution is a modular system, made up of units that can be exactly molded to your network requirements without superfluous hardware. The result is a digital signage network streamlined in function and cost-effective on budget.

The Minicom DS Vision system features full RS-232 bidirectional communication, which gives you the ability to remotely query screen operation time - essential for monitoring the remaining life of your screens and a valuable precursor to measuring advertising effectiveness. The DS system also enables power commands that turn either the entire screen network or screen groups on/off. Screen wear and tear is thus minimized while maximizing the life of your digital signage network.  With extended range, DS Vision 3000 gives you the freedom to set-up your LCD/plasma screens at any desired location, without fear of compromising your media quality and safe in the knowledge that your media player is out of sight and out of unauthorized hands. Whether multiple-screen timetables and advertisements, or single-screen bulletins, signs and training aids, the DS Vision 3000 system delivers your message, picture perfect, every time.

The DS Vision 3000 consists of the following components (each sold separately):

  • Broadcaster 8/16 port
  • Line Splitter 8 port
  • Remote (110m/360ft)
  • Remote Long (600m/2000ft)
  • Video Tuning Unit

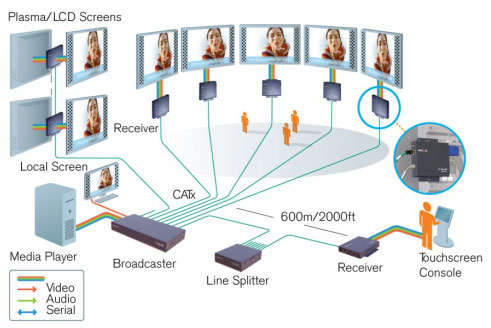

Minicom DS Vision 3000 Application Diagram
Minicom DS Vision 3000 CAT 5 Range Extender System Application Diagram

Minicom DS Vision 3000 System Features:

  • Max. Resolution - 1080p.
  • Single CAT 5 Cable.
  • System Range - 600m (2000ft).
  • Bidirectional RS-232 Control - Enables remote screen control (query & power).
  • Service Utility - For easy setup and maintenance.
  • Palm-Held Video Tuning Unit.
  • DDC Support.
  • Out-of-Band Operation.
  • VESA Screen Mounts.
  • Open Protocol - For CMS integration.

Minicom DS DSV3K-B8 Broadcaster Specifications:

Mechanical
Dimensions 292.5 x 153.6 x 41.5mm
PowerExternal Adaptor 5VDC 2A
Cables/Connectors
VGA InHDD15M
VGA Local HDD15F

Stereo audio In/Out Jack PL 3.5mm
Serial InDB9F
System Out8 RJ45
ControlRJ11
Power LEDGreen (at the front)

Minicom DS Vision 3000 (DSV3K) System Specifications:

Environmental
Operating Temperature 5°C to 40°C / 41°F to 104°F
Storage Temperature -40°C to 70°C / -104°F to 158°F
ResolutionUp to 1920x1440 @ 60Hz (depending on the cable length)
Input/Output Video SignalsAnalog signal red, green, blue 0.7v p-p 75 Ohm
SyncTTL Compatible
Horizontal/Vertical SyncPositive/Negative
System CableCATx UTP/ FTP cable 2x4x24 AWG Solid Wire
Maximum Distance600m/2000ft
Skew Compensation Up to 63 n sec
DDCComplies with VESA DDC-2 specification
RS-232 ConnectionFull serial = RXD, TXD, DTR, DSR, RTS, CTS
Serial baud rate57,000
AudioStereo
Frequency Response20Hz to 20kHz, +/−1dB.
Signal to Noise Ratio80dBA
Crosstalk (all hostile)-70dB
Input Impedance10k Ohm
Line Level OutputSupports multimedia speakers.
Warranty3 years

The Minicom DS DSV3k-B8 was formerly known as the 0VS50003, 0VS50003A, OVS50003, or OVS50003A
