Avocent SwitchView 1000 16 Port KVM Switch Bundle w/Cables

16SV1000BND1-001

$865.00

Discontinued
Recommended replacement: Cyberview CV-1601
Alternative options: Contact Us

The Avocent SwitchView 1000 16SV1000BND1-001 rackmount, 16-port KVM switch bundle provides PS/2 and/or USB connectivity for SMB server rooms and includes four 6ft CBL0029 and 4 9ft CBL0030 KVM cables. This single-user KVM switch has an on-screen display (OSD) and supports 2048 x 1536 video resolutions. This SwitchView 1000 switch can be cascaded to support up to 256 target devices. With a 1U high design, this 16-port KVM switch does not compete for valuable rack space in SMB server rooms. The 16SV1000BND1-001 is flash upgradeable for fast and easy updates. The password protection feature gives you the benefit of added security access to your business-critical servers.

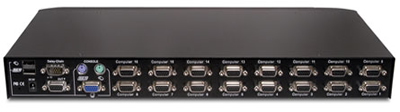

Avocent SwitchView 16SV1000BND1-001 KVM Switch Backside
Avocent SwitchView 16SV1000BND1 KVM Switch Backside

Avocent SwitchView 16SV1000BND1-001Features:

  • Three-in-one KVM Cables included (4 each CBL0029 and 4 each CBL0030)
  • On-screen display (OSD): Simple control through an on screen menu
  • Password protection: Secure access is based on password protection
  • Programmable autoscan: Customize scanning times between attached systems
  • Flash upgradeable: Convenient upgrades mean that the product never goes out of date
  • USB hot key switching: Switch via USB keyboard sequence
  • Daisy chain - auto initialization: Connect multiple units together without complicated configuration
  • USB & PS/2 system/target support: Supports both PS2 and USB systems
  • USB & PS/2 peripheral/user support: Supports PS/2 or USB peripherals to control a mix of PS/2 or USB systems
  • 1U height: Fits perfectly into a standard rack. Does not use a large amount of valuable rack space
  • Combo cables: Uses a three-in-one KVM cable that supports USB or PS/2 target devices (includes 4 x CBL0029 and 4 x CBL0030 cables)
  • Video resolution: 2048 x 1536 video resolution supports the most demanding server room applications

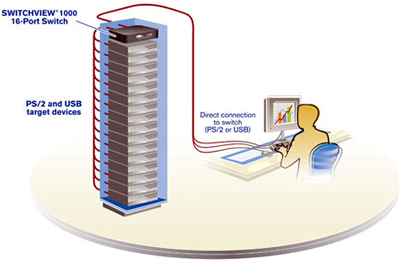

Avocent SwitchView 16 Port KVM Switch Diagram
Avocent SwitchView 16 Port KVM Switch Diagram

Avocent SwitchView 16SV1000BND1-001 Specifications:

Mechanical
Height 1.75 in. (4.45 cm)
Width 16.14 in. (41 cm)
Depth6.49 in. (16.5 cm)
Weight4.85 lbs. (2.2 kg)
Environmental
Operating Temperature32 to 104 F (0 to 40 C)
Storage Temperature-4 to 140 F (-20 to 60 C)
Power
Operating Voltage5V
Power Frequency60 Hz
InputDC 9V
Supported Hardware
ComputersPC, Mac, Sun (with USB or PS/2 interface)
Monitor2048 x 1536 maximum
PeripheralsPS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor
Standards
Approved Agency FCC, CE, C-Tick, UL, cUL
UPC / EAN Barcode icon
UPC 636430058665
EAN 0636430058665
