Adder INFINITY 101 DP - Zero U, IP-based, KVM extender/matrix Transmitter for DisplayPort, audio and USB

ALIF101T-DP

$1,095.00$1,040.25
Save $54.75
FREE Shipping on orders over $100
For Government Pricing
Contact Us

ADDERLink Infinity ALIF101T-DP is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. ALIF101T-DP transmitter requires at least one ALIF1002R receiver to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

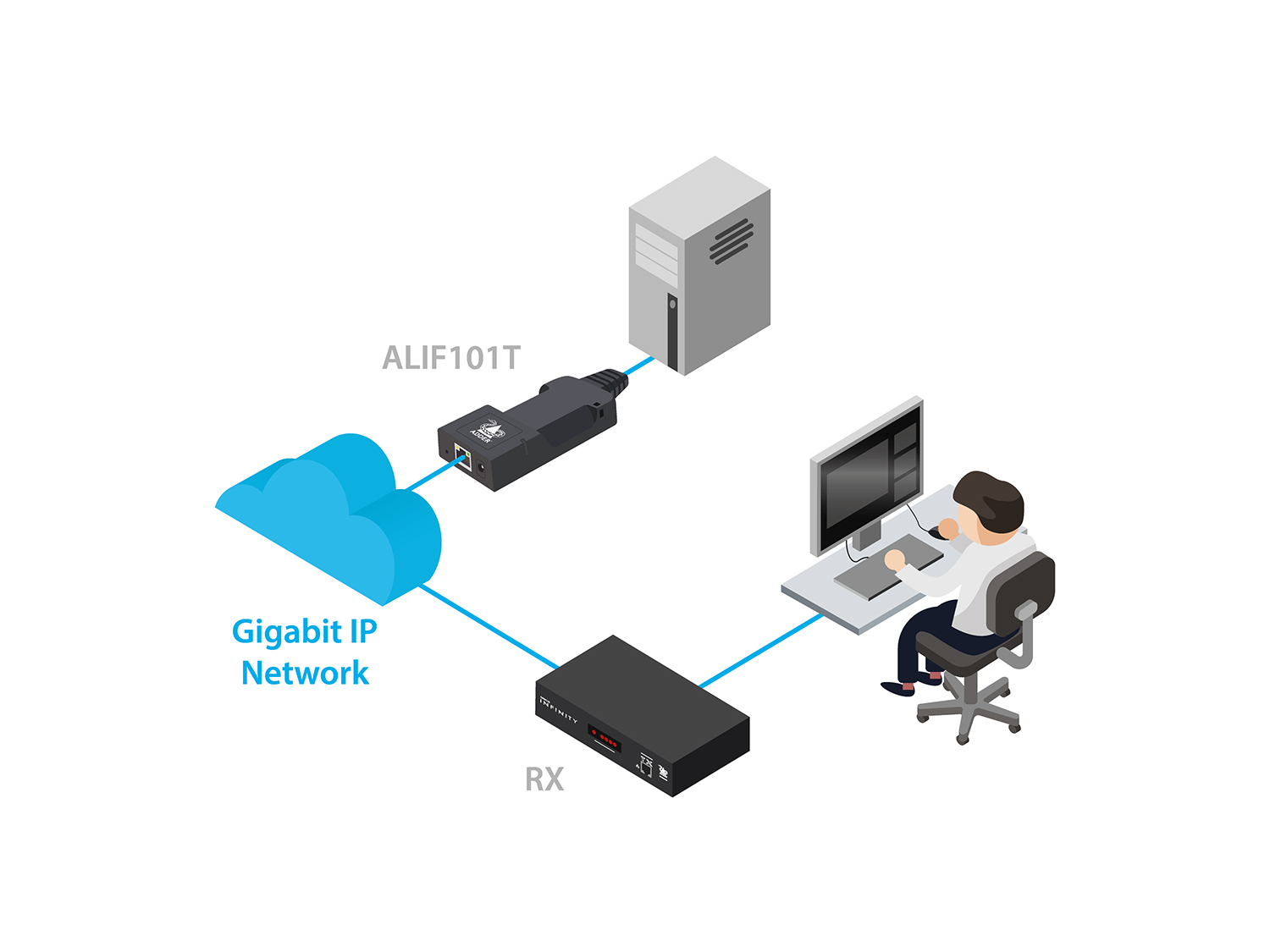

ALIF101T-DP Transmitter Diagram
ALIF101T-DP Transmitter - Point-to-point Application

See Detailed Layout

  • DisplayPort configuration
  • Zero-U form factor
  • USB powered with Low power consumption
  • 1920 x 1200 @ 60Hz maximum resolution with minimal lag
  • 330ft (100m) extension distance on single CATx
  • Unlimited extension using IP network
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast

Adder ALIF101T-DP Features

  • Adder ALIF100T-DP Use Case

    Infinite Flexibility

    With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

    • Point-to-point extension (local / over-IP)
    • AV / KVM Switch multi-point matrix (over-IP)
    • Sharing a single target (over-IP)
    • Multicasting to many receivers (over-IP)

    Learn more

  • Adder Multimode SFP Module

    Zero-U size

    The ALIF101T-DP takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation
  • Adder Multimode SFP Module

    Network IP-based

    Use your existing networking infrastructure to extend or matrix your computing resources to your users

  • Adder Multimode SFP Module

    USB Line-Powered

    The ALIF101T-DP can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available.
  • Adder ALIF100T-DP Extension Over IP Diagram

    Low power consumption

    Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions


  • Adder ALIF100T-DP Broadcast Beat Award for Innovation

    Pixel-perfect digital video

    The ALIF101T-DP uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer ensuring the very best picture available and color accuracy. The system supports resolutions to a maximum of 1920x1200@60Hz.


  • Adder USB Cable

    USB Audio

    The ALIF101T-DP system delivers USB stereo audio (Line In, Line Out) digitally across the network. Digital USB based audio supports supports up to 16-bit/48 kHz hi-res files, for those seeking absolute audio perfection.

  • ALIF100T-DP USB 2.0 with emulation

    USB 2.0 with emulation

    Enables connection of USB human interface devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching.

  • Adder ALIF100T-DP EDID Management - Ensure Perfect Match Between Source & Display

    Intelligent EDID management

    The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed


  • Adder ALIF100T-DP

    Plug and Play

    AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.


ALIF101T-DP Package Contents

Adder ALIF100T-DP Package Contents

  • (1) ALIF101T-DP Transmitter
  • (1) Information wallet containing: Quick start guide and Safety document
  • (1) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Optional Extras


Adder ALIF101T-DP Specifications

Mechanical
Length 4.3 in. (110 mm.)
Width 2.17 in. (55 mm.)
Depth 1.0 in. (25 mm.)
Weight 0.4 lbs. (0.2 kg.)
Construction ABS and aluminium construction
Environmental
Operating Temperature 0 to 50°C / 32 to 122°F.
Storage Temperature -10 to 60°C / 14 to 140°F.
Operating / Storage Relative Humidity 10-90% non-condensing
Altitude < 9850ft (3000m)
Power
USB Power 2 x USB 2.0 (2x 500mA @5V) 5W
External Power (optional) 5VDC, 1A
Typical power consumption 3W
BTU / hr 10.2 BTU/hr
Feature Specification
USB USB2.0 full and low speed (No HS support)
USB features Keyboard, mouse and touch
USB device seen as 7 or 13 port hub
Max video resolution Up to 1920x1200@60Hz
Audio Line in/out USB audio 2 channel 16bit 48KHz
DisplayPort Audio None
Ethernet 1GbE (No 10/100 support)
Cable length rules Ethernet specifications rules apply 330 feet (100 meters) maximum run
Peripheral connections Computer: 1 x DisplayPort, 2 x USB type A,
Ethernet: 1 x 8p8c (RJ45) for AdderLink Infinity network connections
Power: 2.5mm socket
Compatibility All computers with DisplayPort, USB, Cat5e and above - requirement dependent.
Display port version requires source to be DisplayPort Dual-Mode (DP++) compliant.
Regulation Approval CE, FCC

This part is also known as Adder ALIF101T-DP-US, and ALIF-101T-DP.
