Avocent AutoView 8-Port Digital KVM Switch

AV3050-001

$1,245.00

Discontinued
Recommended replacement: Avocent AV3108
Alternative options: Contact Us

The AutoView AV3050 is an 8-port KVM switch which provides server access for one remote digital user and one local analog user. The switch includes local USB peripheral support and provides convenient access to PS/2, Sun, and USB servers and serial-based devices. The on-board Web interface means that no additional software is required for remote server access.

Avocent AV3050 Features:

  • Provides flexible remote server access with one remote digital path and one local analog user.
  • On-board Web interface- user's PC requires no additional software for remote server access.
  • IPv6- Supports the next generation Internet Protocol version 6
  • Multi-platform support- Local PS/2 and USB connections and multi-platform target devices, including PS/2, USB, Sun and serial support
  • Integrated access cabling or AVRIQ support- Lowers overall cost with CAT 5-designed integrated access cables for PS/2 or USB connectivity
    Security
  • LDAP Authentication- Supports the lightweight directory access protocol (LDAP) for authentication when accessing the switch via the on board web interface
  • Encrypted IP communication- Switch supports SSL-128bit, DES, 3DES or AES encrypted communication
  • Powerful user access control 64 user accounts with access control lists for each user classified by:
    • User - KVM access only
    • User Administrator - KVM access, and ability to configure users and user admin.
    • Appliance Administrator - KVM, ability to configure user, user admins, and appliance administration and configuration

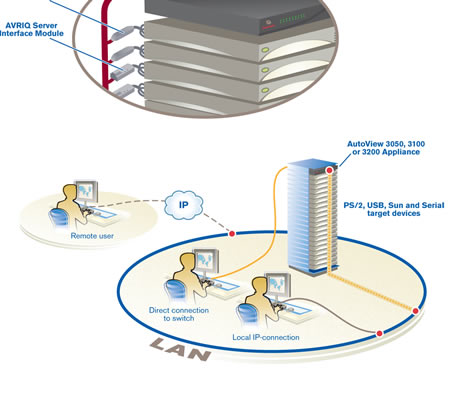

Avocent AV3050 Application Diagram
Avocent AV3050 Application Diagram

Avocent AV3050 Specifications:

Mechanical
Height 1.72 in. (4.37 cm)
Width 17.00 in. (43.18 cm)
Depth 8.075 in. (20.5 cm)
Weight 5.3 lbs. (2.40 kg) without cables
Environmental
Operating Temperature 32° to 104° degrees F (0° to 40° degrees C)
Storage Temperature -4° to 158° degrees F (-20° to 70° degrees C)
Humidity: 10 to 95%, non-condensing
Power
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz autosensing
Input 25W maximum
Supported Hardware
Computers PS/2, Sun, USB
Monitor VGA, SVGA, XGA, and SXGA, Maximum Resolution: 1280 x 1024 @ 75 Hz
Peripherals USB keyboard and mouse, PS/2 keyboard, PS/2 mouse, IntelliMouse
Standards
Approved Agency EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST
