The AdderView AVM208 allows two users to control eight computers with simultaneous
non-blocking access. This 8 port AdderView Matrix KVM switch is designed
for use in server rooms and high density PC environments by multiple and simultaneous
users. A reliable and flexible solution, the matrix AVM208 is engineered to control
environments where reliable operation is essential, even across mixed operating
systems. This Adder KVM switch offers an advanced On-Screen Display, 1900x1440 video
resolution, Flash upgradeable firmware and individual user profiling.

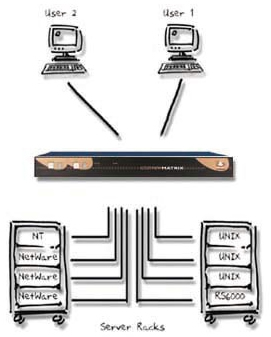

AdderView AVM208 KVM Switch Diagram
Adder AVM208 Features:
Two Keyboard Video monitor and Mouse ports allow simultaneous access.
Cascade Matrix to support up to 500 PCs from one OSD database.
Exceptionally high video quality with screen resolution up to 1900 x 1440.
DDC compliant monitor ports.
Standard PC99 specification color coded connectors reduce cabling costs.
Mixed PS/2, wheel mice and AT/ RS232 keyboards and mice supported.
Channel selection via On Screen Display menu, front panel, mouse, user selectable
hot-key combinations or RS232 control.
OSD menu supports up to 16 different user access profiles.
Compatible with all major software including DOS, Windows 3.x/95/98/NT/2000/ME/XP,
Linux, Unix and NetWare.
Advanced On Screen Display - up to 16 different passwords and user profiles
can be stored on the Matrix
Flash upgradeable firmware - as new drivers are released, free upgrades
can be downloaded from the Adder website.
Front panel keys - used for selecting users and channels manually. Also
used for selecting auto-scan.
Front panel display - 7 Segment display (red) shows the currently selected
CPU. 7 Segment display (green) shows the currently selected user.
Indicators show keyboard and mouse activity.
Selection methods - convenient switching using On Screen Display menu, selectable
keyboard hot-key, 3 button mouse, front panel key or RS232 serial control.
Hot connection of devices - can be connected to many running PCs without
reboot by using the keyboard and mouse reset feature.
On the fly configuration - the Matrix can be configured using the OSD menu.
User definable hot-key commands can be used for quick channel selection.
Expandable - where the size of your installation is beyond the scope of
a single Matrix, additional units can be cascaded. This will allow you to use
multiple units to provide a video-switching network.
Auto-scan - the Matrix can be set to automatically scan all ports or all
active ports at a user definable rate.
Automatic mouse conversion - PS/2, IntelliMouse and RS232 type mice are
all supported between switch and CPUs. Controlling mouse/trackball is PS/2 type.
Mouse control of OSD menu.
Name search facility in OSD menu.
Users may select exclusive or shared computer access.
Keyboard and mouse reset features for each user port.
Optional CPU reminder banner may be transparent and moved around the screen.
Upload and download of OSD configurations to a PC file or Excel spreadsheet.
Cascaded units do not need to be configured.
Adder AVM208 Specifications:
Mechanical
Height
1.7 in. (45 mm.)
Width
18.9 in. (482 mm.)
Depth
8 in. (205 mm.)
Power
5V DC, 2A
CPU Connectors
8
15 way HD D Female for
CPU video
8
6 way mini DIN Female for
CPU keyboard
8
6 way mini DIN Female for
CPU mouse
KVM Connectors
2
6 way mini DIN Female for controlling keyboards
2
6 way mini DIN Female for controlling mice
2
15 way HD D Female for controlling monitors
1
5V DC 2A power inlets for external PSU
1
D9 way Female for Flash upgrade, RS232 control,
expansion and remote connectivity accessories
