Rose CrystalView Digital DVI CATx Extender w/ Audio, Serial, Dual Video, DVI, USB

CRK-2DTXUD2D/AUD

$4,299.00$3,761.63
Save $537.37
FREE Shipping on orders over $100

The Rose CrystalView CRK-2DTXUD2D/AUD is a Dual Video, DVI, USB, Dual Access Digital CATx KVM Extender with Audio. The CrystalView DVI CATx extender makes extending and operating a computer, server, or KVM switch from a great distance possible by the use of standard CAT5, 5e, 6, or 7 cable. You can fully operate and control a computer or server from as far away as 400 feet using standard CATx cable.  This DVI KVM extender supports all combinations of DVI monitors and video cards.

The system consists of two Units, a transmitter and a receiver. The transmitter connects to your CPU's keyboard, DVI monitor, and mouse connectors, or to a Rose KVM switch. The receiver connects to a keyboard, DVI video monitor and mouse or KVM station. The transmitter and receiver are connected together with CATx industry standard cable. The receiver can be up to 400 feet from the transmitter using CAT5, 5e, 6, or 7 cables.  All models are available with both transmitter and receiver KVM access. The transmitter's KVM access allows an additional KVM station to be connected to the transmitter unit.

Rose CrystalView DVI CATx Extender Features:

  • Supports:
    • DVI-D video mode
    • USB keyboards and mice
  • Extend a KVM station up to 400' from a CPU over CATx cable
  • Video resolutions up to 1920 x 1200 @ 60Hz
  • Supports 18-Bit color (256,000 colors)
  • Compatible with all Operating Systems
  • Fully automatic KVM sharing
  • Status and Data error indicators on all units
  • Easy installation and operation

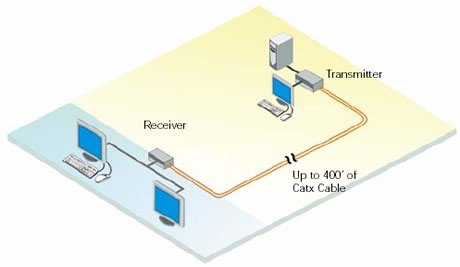

Rose CystalView DVI CATx Extender Application Diagram
Rose CystalView DVI CATx Extender Application Diagram

Rose CRK-2DTXUD2D/AUD Specifications:

Mechanical
Height 1.375 in. (3 cm.)
Width 4.125 in. (10 cm.)
Depth 5.625 in. (14.4 cm.)
Weight 0.65 lbs. (0.3 kg.)
Environmental
Operating Temperature 5°C - 45°C / 41°F - 113°F
Humidity 80% max, non-condensing
Power 90-240 VAC to 5.0 VDC / app. 10W
Connectors
Video DVI-D
Keyboard USB
Mouse USB
Resolution 1920 x 1200 @60 Hz
Max Distance 400 ft. (120 m.) CATx cable (AWG24)
200 ft. (60 m.) CATx cable (AWG26/8)
Indicators (LED's) Front Panel - Power
Video check LED
RJ45 LED - Data error/status
Serial
Speed 19,200 Baud
Data Format Format independent
Flow Control RTS, CTS, DTR, DSR
Audio Bi-directional stereo audio, CD-quality (16 bit, 38.4 KHz), Line level - 5V p-p, +17db microphone amplification setting option
Approvals CE
