Home >> KVM Switch Vendors >> Rose Electronics >> Rose CRV-6DLP
Share |
CRV-6DLP - Rose CRV-6DLP - CRV-6DLP - Click To Enlarge


Part # CRV-6DLP
Sale Price:
Free Project Eval
Product Description

Rose CrystalView Rack KVM Extender (CRV-6DLP)
The CrystalView Rack (CRV-6DLP) is the KVM extender of choice for businesses big and small that need to extend several KVM stations away from CPUs. The CrystalView Rack allows you to position 6 to 12 CPUs up to 1,000 feet away from the KVM stations using common twisted pair CAT5 cable. Each CrystalView module is completely independent from the other modules

Rose CrystalView Rack KVM Extender (CRV-6DLP) Features & Benefits:

  • Extend 6 to 12 KVM stations from 6 to 12 CPUs using single CAT5 twisted pair, solid core cable (Up to 1,000 feet)
  • Video resolutions up to 1600 x 1200 at 200 feet, 1280 x 1024 at 300 feet, 1024 x 768 at 1,000 feet
  • Compatible with Rose Electronics family of KVM switches such as ServeView Pro, UltraView Pro, UltraMatrix, and other KVM switches
  • Compatible with Windows, Windows NT, OS/2, UNIX, Linux and other operating systems
  • Fully automatic KVM sharing on a first-come, first-serve basis using the dual models
  • The CrystalView uses a microprocessor to emulate the keyboard and mouse. The keyboard and mouse on the Remote units do not have to be connected for the PC to boot; only the local units must be connected to the PC
  • The local unit can invoke a private mode to inhibit usage of the remote unit (Dual models only)
  • On the dual models, the connected computer's video is displayed on both the local and remote monitors
  • Bi-directional serial and stereo audio options (Serial and audio models only)
  • Stereo audio can be transmitted in either direction across the CAT5 link simultaneously (Serial and audio models only)
  • Rack mountable chassis

Rose CrystalView Rack KVM Extender (CRV-6DLP)

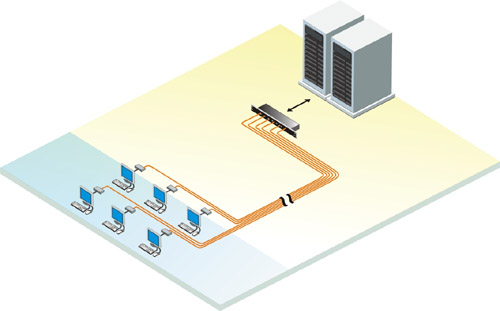

Rose CrystalView Rack KVM Extender (CRV-6DLP) Function Diagram

Rose CrystalView Rack KVM Extender (CRV-6DLP) Specifications:

Dimensions/Weight 1U Rack models 17in 4.2in 1.75in 3.75 - 4.00lbs
2U Rack models 17in 4.2in 3.50in 5.00 - 5.50lbs
Environmental 0C - 45C / 0% - 80% RH non-condensing
Power Optional 5VDC external power adapter

Serial Data
Baud rate Up to 19,200
Data flow - Format independent
Flow control - RTS, CTS, DTR, DSR

Audio Data
Signal level - 5V p-p
Impedance - 47K
Transmission - 16 bit, 38.4KHZ Digitized audio
Microphone - Powered or un-powered
Speakers - Powered


CPU in
Video out

PS/2 MiniDIN-6F
PS/2 MiniDIN-6F
DB9F (out), DB9M (in)
2-3.5mm stereo jack

Approved Agency CE
