2-port Secure USB DVI KVM Switch

CS1182

$575.00

Discontinued
Recommended replacement: Aten CS1182D
Alternative options: Contact Us

The ATEN CS1182 is NIAP-certified and passed the Evaluation Assurance Level 2 (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices (HIDs) Protection Profile v2.1, satisfying the latest security requisites set by the U.S. Department of Defense for peripheral switches. Compliance ensures maximum information security while sharing a single set of HIDs (keyboards, mouse, speakers, etc.) between multiple computers. Conformity with Protection Profile v2.1 certifies that other USB peripherals cannot be connected to the console ports of the CS1182, and that only a keyboard and mouse are accommodated, therefore providing high-level security, protection and safekeeping of data.

Hardware security includes tamper-evident tape, chassis intrusion detection, and tamper-proof hardware, while software security includes restricted USB connectivity - non HIDs (Human Interface Devices) are ignored when switching - an isolated channel per port that makes it impossible for data to be transferred between secure and unsecure computers, and automatic clearing of the keyboard buffer.

By combining physical security with controlled USB connectivity, the CS1182 gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.

Note:
1. The National Information Assurance Partnership (NIAP) is a United States government initiative to meet the security testing needs of IT consumers and manufacturers. It is operated by the National Security Agency (NSA) and the National Institute of Standards and Technology (NIST).
2. The CS1182 additionally satisfies Evaluation Assurance Level 2+ (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices Protection Profile v2.1

In the box:
1x CS1182 USB DVI Secure KVM Switch
1x Power Cord
1x User Instructions

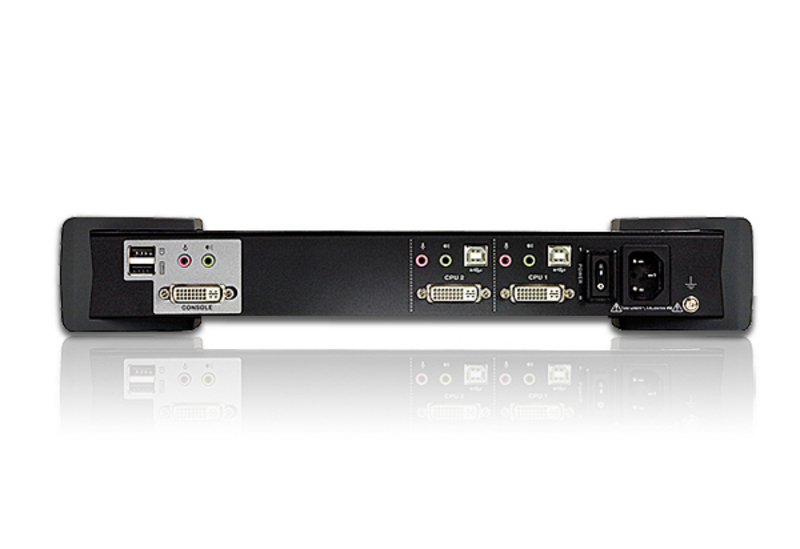

ATEN CS1182 Rear View
ATEN's CS1182 Rear Connections

Features of the CS1182

  • 2-port USB DVI Dual-Link Secure KVM Switch
  • Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
  • One USB console controls 2 secure computers
  • NIAP-certified - validated to Common Criteria EAL2+ security requirements
  • Restricted USB connectivity - non HIDs (Human Interface Devices) are ignored when switching
  • Isolated channel per port - makes it impossible for data to be transferred between computers
  • Tamper-evident tape - provides a visual indication of any attempt to gain access to the switch's internal components
  • Chassis intrusion detection - if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
  • Tamper-proof hardware - all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
  • Non-reprogrammable ROM - prevents tampering and attempts to reprogram the switch's firmware
  • Clears keyboard buffer - keyboard data is automatically cleared after transmission to the switch
  • Video DynaSyncª - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Superior video quality - 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
  • Rugged metal enclosure
  • Built-in internal power
  • Speaker and microphone support

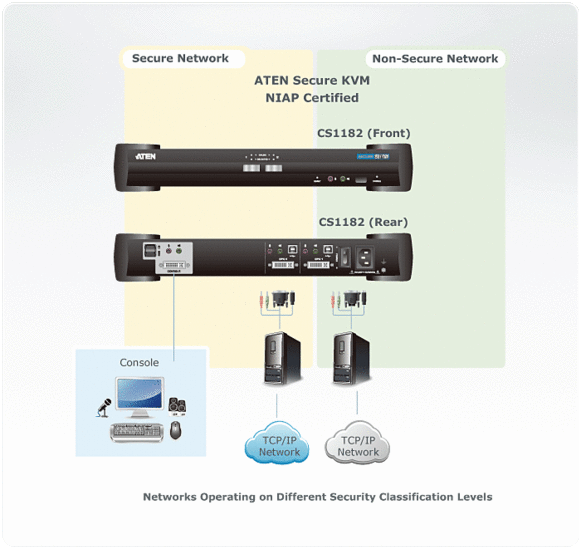

Aten secure 2port DVI KVM Application Diagram
Typical Application Diagram

 CS1182 Specifications:

Mechanical
Width13.74 in. (34.9 cm.)
Height2.39 in. (6.06 cm.)
Depth6.65 in. (16.9 cm.)
Weight4.54 lbs. (2.06 kgs.)
Computer Connections2
Port SelectionPushbutton
Connectors
Console PortsKeyboard- 1 x USB Type-A Female (Black)
Video - 1 x DVI-I Dual Link Female (White)
Mouse - 1 x USB Type-A Female (Black)
Speaker- 2 x Mini Stereo Jack Female
(Green;1 x front panel,1 x rear panel)
Mic.- 2 x Mini Stereo Jack Female
(Pink;1 x front panel,1 x rear panel)
KVM PortsKeyboard/Mouse- 2 x USB Type-B Female (White)
Video- 2 x DVI-I Dual Link Female (White)
Speaker- 2 x Mini Stereo Jack Female (Green)
Mic.- 2 x Mini Stereo Jack Female (Pink)
Power1 x 3-prong AC Socket

Switches
Port Selection2 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker
LEDs
Power1 (Blue)
On-line2 (Green)
Selected2 (Orange)
Emulation
Keyboard/MouseUSB
VideoDVI Dual Link: 2560x1600;
DVI Single Link: 1920x1200;
DVI-A: 2048x1536
I/P Rating100-240V AC; 50/60 Hz; 0.5A
Power Consumption120V / 5.1W; 230V / 5.1W
Environment
Operating Temperature0-40C
Storage Temperature-20-60C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
UPC / EAN Barcode icon
UPC 672792003028
EAN 0672792003028
