4-Port Secure USB DVI KVM Switch

CS1184

$720.00

Discontinued
Recommended replacement: Raritan RSS-104
Alternative options: Contact Us

The ATEN CS1184 4-Port USB DVI Dual-Link Secure KVM Switch offers secure and reliable access for any government/military desktop environment where security is imperative by providing safe switching between computers operating on different secure networks. NIAP-certified according to Common Criteria's EAL2+ certification, the CS1184 provides 4-port models for secure desktop workstation use.

Hardware security includes tamper-evident tape, chassis intrusion detection, and tamper-proof hardware, while software security includes restricted USB connectivity - non HIDs (Human Interface Devices) are ignored when switching - an isolated channel per port that makes it impossible for data to be transferred between secure and unsecure computers, and automatic clearing of the keyboard buffer.

By combining physical security with controlled USB connectivity, the CS1184 gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.

Note:
1. The National Information Assurance Partnership (NIAP) is a United States government initiative to meet the security testing needs of IT consumers and manufacturers. It is operated by the National Security Agency (NSA) and the National Institute of Standards and Technology (NIST).
2. The CS1184 additionally satisfies Evaluation Assurance Level 2+ (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices Protection Profile v2.1

In the box:
1x CS1184 USB DVI Secure KVM Switch
1x Power Cord
1x User Instructions

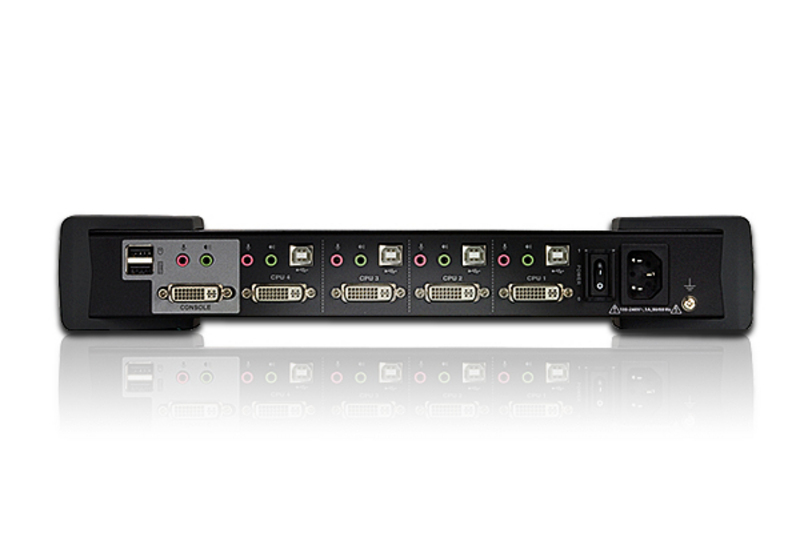

ATEN CS1184 Rear View
ATEN's CS1184 Rear Connections

Features of the CS1184

  • 4-port USB DVI Dual-Link Secure KVM Switch
  • Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
  • One USB console controls 4 secure computers
  • NIAP-certified - validated to Common Criteria EAL2+ security requirements
  • Restricted USB connectivity - non HIDs (Human Interface Devices) are ignored when switching
  • Isolated channel per port - makes it impossible for data to be transferred between computers
  • Tamper-evident tape - provides a visual indication of any attempt to gain access to the switch's internal components
  • Chassis intrusion detection - if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
  • Tamper-proof hardware - all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
  • Non-reprogrammable ROM - prevents tampering and attempts to reprogram the switch's firmware
  • Clears keyboard buffer - keyboard data is automatically cleared after transmission to the switch
  • Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Superior video quality - 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
  • Rugged metal enclosure
  • Built-in internal power
  • Speaker and microphone support

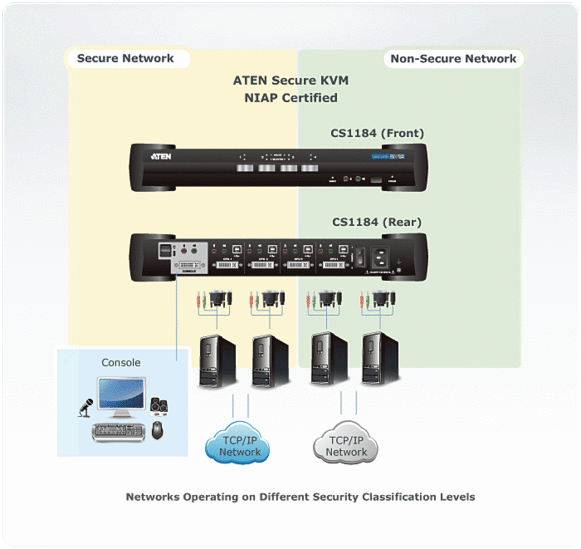

Aten secure 4-port DVI KVM Application Diagram
Typical Application Diagram

 CS1184 Specifications:

Mechanical
Width13.74 in. (34.9 cm.)
Height2.39 in. (6.06 cm.)
Depth6.65 in. (16.9 cm.)
Weight4.63 lbs. (2.10 kgs.)
Computer Connections4
Port SelectionPushbutton
Connectors
Console PortsKeyboard- 1 x USB Type-A Female (Black)
Video - 1 x DVI-I Dual Link Female (White)
Mouse - 1 x USB Type-A Female (Black)
Speaker- 2 x Mini Stereo Jack Female
(Green;1 x front panel,1 x rear panel)
Mic.- 2 x Mini Stereo Jack Female
(Pink;1 x front panel,1 x rear panel)
KVM PortsKeyboard/Mouse- 4 x USB Type-B Female (White)
Video- 4 x DVI-I Dual Link Female (White)
Speaker- 4 x Mini Stereo Jack Female (Green)
Mic.- 4 x Mini Stereo Jack Female (Pink)
Power1 x 3-prong AC Socket

Switches
Port Selection4 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker
LEDs
Power1 (Blue)
On-line4 (Green)
Selected4 (Orange)
Emulation
Keyboard/MouseUSB
VideoDVI Dual Link: 2560x1600;
DVI Single Link: 1920x1200;
DVI-A: 2048x1536
I/P Rating100-240V AC; 50/60 Hz; 0.5A
Power Consumption120V / 6.1W; 230V / 5.7W
Environment
Operating Temperature0-40C
Storage Temperature-20-60C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
UPC / EAN Barcode icon
UPC 672792003035
EAN 0672792003035
Question: WHAT IS THE MTBF VALUE OF ATEN CS 82U/CS 84U KVM SWITCH. URGENT PLEASE.
Answer: Thank you for your inquiry,

The Mean Time Between Failure (MTBF) for the Aten CS82U and CS84U units are as follows:

At 25°C (77°F)
CS82U: 1,665,509.1 hrs
CS84U: 1,205,160.5 hrs

At 55°C (131°F)
CS82U: 834,901.6 hrs
CS84U: 604,134.0 hrs

Question: how much it weighs
Answer: Thank you for your inquiry,

The Aten CS1184 KVM weighs 4.63 lbs. (2.10 kgs.).
