ATEN CS1316 16-Port PS/2 - USB KVM Switch
CS1316
Save $131.96
The ATEN CS1316 KVM switch allows direct connection access and control of 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The ATEN 16-port switch supports both USB and PS/2 connections for the console and computers.
ATEN CS1316 KVM Features:
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSyncª - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)

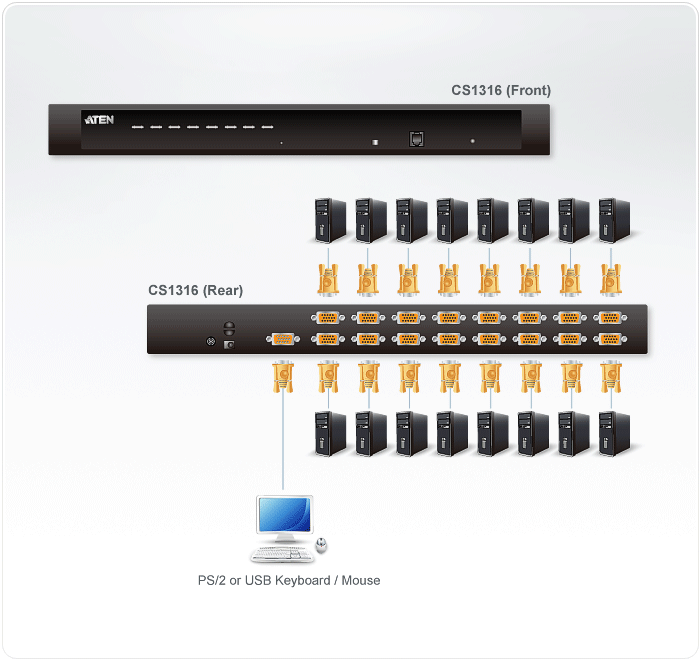

Aten CS1316 Diagram
CS1316 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: Default: [Num Lock] + [-] | Default: [Num Lock] + [-] Release [Port Number] [Enter] | Default: [Scroll Lock] [Scroll Lock] |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] + [F12] Release [Port Number] [Enter] | Alternate: [Ctrl] [Ctrl] |
Aten CS1316 Requirements:
- Console
- A VGA, SVGA, or Multisync Monitor
- A USB or PS/2 Keyboard & Mouse
- Computers
- A VGA, SVGA, or Multisync graphics card with HDB-15 port.
- PS/2 or USB ports
Aten CS1316 Package Content:
- 1 CS-1316 16-port PS/2 USB KVM Switch with Rack Mount Kit
- 1 Console Cable
- 1 Firmware Upgrade Cable
- 1 Foot Pad set (4 pads)
- 1 Power Adapter
- 1 User Manual
Aten CS1316 Specifications:
| Mechanical | Unit | |
| Height | 1.73 in. (4.40 cm.) | |
| Width | 6.3 in. (16.00 cm.) | |
| Depth | 17.05 in. (43.30 cm.) | |
| Weight | 4.17 lbs. (1.89 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| On Line | 8 (Orange) | |
| Selected | 8 (Green) | |
| Power | 1 (Dark Green) | |
| Port Selection | OSD, Hotkey, Pushbutton | |
| Video Resolution | 2048 x 1536; DDC2B | |
| Power Consumption | DC 5V, 3.05W | |
| Scan Interval | 1-255 Seconds | |
| Supported Hardware | ||
| Emulation | USB PS/2 keyboard/mouse | |
| Keyboard, Mouse & Monitor | 1 x SPHD-15 | |
| KVM Ports | 8 x SPHD-15 | |
| Firmware Upgrade | 1 x RJ11 | |
| Power | 1 x DC Jack | |
| Standards | ||
| Approved Agency | RoHS | |
This is one replacement option for the ACS1216A and ACS1216.
UPC 672792100369
EAN 0672792100369
Question: will it support windows 7 OS?
Answer: Thank you for your inquiry. According to the manufacturer, this switch is compatible with Windows 7.
Question: Are there 2 USB connections on this cable, 1 for keyboard and 1 for mouse. I cant tell from the picture.
Answer: Thank you for your inquiry. I will assume the question here was directed for the KVM cables listed under the 'Accessories' tab for the ATEN CS1316. If true, the cables listed do only have one male USB Type A connector, as both Keyboard and Mouse are transmitted through it together. If you would like a recommendation or clarification based on your application, please feel free to contact your KVM Switches Online sales representative.
Answer: Thank you for your inquiry. According to the manufacturer, this switch is compatible with Windows 7.
Question: Are there 2 USB connections on this cable, 1 for keyboard and 1 for mouse. I cant tell from the picture.
Answer: Thank you for your inquiry. I will assume the question here was directed for the KVM cables listed under the 'Accessories' tab for the ATEN CS1316. If true, the cables listed do only have one male USB Type A connector, as both Keyboard and Mouse are transmitted through it together. If you would like a recommendation or clarification based on your application, please feel free to contact your KVM Switches Online sales representative.
