8-Port PS/2-USB KVM over IP Switch for 1 Local/Remote User

CS1708i

$1,200.00$940.89
Save $259.11
FREE Shipping on orders over $100

The CS1708i KVM switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

Among the CS1708i other outstanding features, a Panel Array Mode provides the ability to simultaneously monitor up to 8 servers per switch; while the Mouse DynaSyncª feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

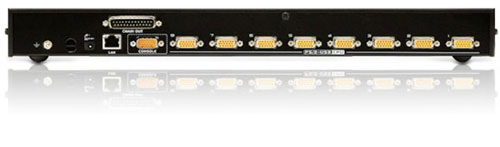

Aten CS1708i Backview
Aten CS1708i Backview

The CS1708i supports the highest security protocols, such as 128 bit SSL encryption for the browser, and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CS1708i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.

These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector.

Aten CS1708i Features:

Hardware

  • 8-port remote access KVM switch - monitor and control up to 8 computers from a single KVM console
  • Daisy chain up to 15 additional units - control up to 128 computers from a single console*
  • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
  • Hot pluggable - add or remove computers without having to power down the switch
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Front panel USB hub allows connected computers to access USB peripherals
  • Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
  • USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Supports USB keyboards for PC, Mac and Sun
  • Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Video DynaSyncª - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Rack mountable in a 19" (1U) system rack

*Compatible KVM Switches for daisy chaining include the following: ACS1208A, ACS1216A, CS1708, CS1716, CS1708A, CS1716A, KH1508, KH1516

Management

  • Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Up to 32 concurrent logins
  • Multilanguage web UI support featuring a tree-structured local and remote OSD
  • Adjustable video quality for flexible adaptation to diverse network environments
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
  • Firmware upgradable
  • Backup and restore configuration and user account settings
  • Event logging
  • Enable/disable browser access
  • IPv6 capable

CS1708i Hot Key Sequence

Hotkey Mode
(Invoke Hotkeys)
Port SelectionInvoke OSD
Default: Default: [Num Lock] + [-]Default: [Num Lock] + [-] Release [Port Number] [Enter]Default: [Scroll Lock] [Scroll Lock]
Alternate: [Ctrl] + [F12]Alternate: [Ctrl] + [F12] Release [Port Number] [Enter]Alternate: [Ctrl] [Ctrl]

Ease-to-Use Interface

  • Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (windows, Mac OS X, Linux, Sun)
  • Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Port names automatically reconfigured when station sequence is changed
  • Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output
  • appears in a separate panel - users can easily select the number of panels to view
  • Windows client and Java client software support; Java client works with all operating systems

Advanced Security

  • Secure keyboard/mouse/video transmission via RC4 128 bit encryption
  • 128 bit SSL browser access
  • Two level password security - up to 64 user accounts with separate profiles for each
  • External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
  • Support for IP/MAC Filter
  • Local and remote access logged and authenticated

Virtual Remote Desktop

  • Resizable remote desktop window
  • Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
  • Mouse DynaSyncª
  • On-screen keyboard with multilanguage support
  • BIOS-level access

Aten CS1708i Package Content:

  • 1x CS1708i KVM over IP Switch
  • 2x Custom KVM Cable Cables (1 x PS/2; 1 x USB)
  • 1x Console Cable
  • 1x Firmware Upgrade Cable
  • 1x Mounting Kit
  • 1x Foot Pad Set (4 pcs)
  • 1x Power Adapter
  • 1x Software CD
  • 1x User Instructions

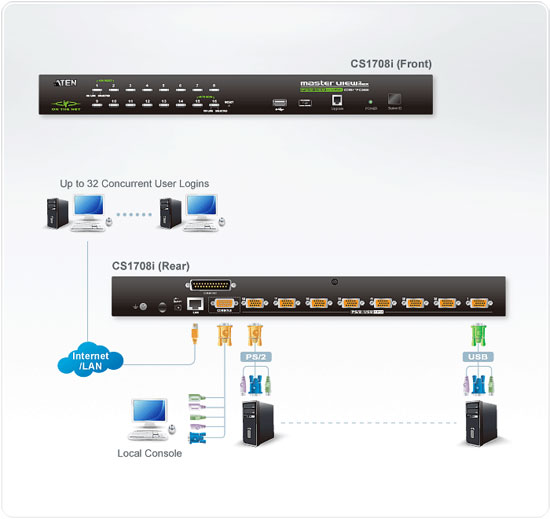

Aten CS1708i Application Diagram
Aten CS1708i Application Diagram

Aten CS1708i Specifications:

Mechanical
Width17.05 in. (43.3 cm.)
Height1.73 in. (4.40 cm.)
Depth6.3 in. (16 cm.)
Weight6.2 lbs. (2.8 kgs.)
HousingMetal
Computer Connections
Direct8
Max128 (via daisy chain)
Console Connections
Local1
Remote1
Port SelectionPushbutton, OSD, Hotkey
Connectors
Console Ports1 x SPHD-18 Male (Yellow)
KVM Ports8 x SPHD-17 Female (Yellow)
Power1 x DC Jack
LAN1 x RJ-45 Female (Black)
Daisy Chain1 x DB-25 Male (Black)
FW Upgrade1 x RJ-11
USB Port (1.1)1 x USB Type A
Switches
Reset1 x Semi-recessed Pushbutton
Power1 x Slide
Port Selection8 x Pushbuttons
LEDs
On Line8 (Orange)
Selected8 (Green)
Power1 (Dark Green)
Station ID2 x 7-segment (Orange)
10/100 Mbps1 (Orange/Green - at LAN port)
Emulation
Keyboard/MousePS/2, USB
Video
Local Console2048 x 1536; DDC2B
Remote1600 x 1200 @ 60Hz / 24bit color depth
Scan Interval1-255 seconds
Power ConsumptionDC 5.3 V; 9.5W
Environment
Operating Temperature0-50C
Storage Temperature-20-60C
Humidity0-80% RH, Non-condensing
UPC / EAN Barcode icon
UPC 672792002137
EAN 0672792002137
