ATEN 4-Port Dual-View KVM Switch

CS1744

$311.00$243.86
Save $67.14

End-Of-Life (EOL)
For stock: Contact Us
Replaced by: ATEN CS1644A

ATEN CS1744 4-Port Dual-View KVM Switch
The Dual-View CS1744 USB KVM Switch brings dual head video functionality to ATEN's USB KVM switch technology. Now, four dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In addition, the CS1744 incorporates a two port USB hub that allows each of the computers to share any USB peripherals connected to the hub on a one computer at a time basis. Recognizing the importance of sound, the switches are also audio-enabled. A single microphone can provide audio input to each of the computers, and you can listen to the audio output of each computer on a single set of speakers (on a one-at-a-time basis).

ATEN CS1744 4-Port Dual-View KVM Switch  Features:

  • One console controls four computers
  • Additional VGA display channel provided for dual display of each computer
  • Additional two USB ports for USB device sharing between two connected computers
  • Audio jacks provided for speaker and microphone sharing
  • Independent switching of KVM, USB, and audio
  • Easy to install - no software required - connecting cables is all it takes
  • Easy to operate - computer selection via push button switches or hotkeys
  • Auto Scan function to monitor computer operation
  • Hotkey selection for OS and keyboard language
  • LED display for easy status monitoring
  • Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching
  • Hot pluggable -add or remove computers for easy maintenance
  • Firmware upgradable
  • Keyboard and mouse emulation for error free booting
  • Supports Windows 98SE or higher, Mac OS 8.6 or higher, SUN Blade 2000/100, (Sun Solaris 8 or higher) Linux and Unix
    Supports multimedia USB keyboards Supports Mac & Sun keyboards
    Supports all mice with native driver installed

CS1744 Hot Key Sequence

Hotkey Mode
(Invoke Hotkeys)
Port SelectionInvoke OSD
Default: [Num Lock] + [-]Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter]Default: None
Alternate: [Ctrl] + [F12]Alternate: [Ctrl] [Ctrl] [Port #] [Enter]Alternate: None

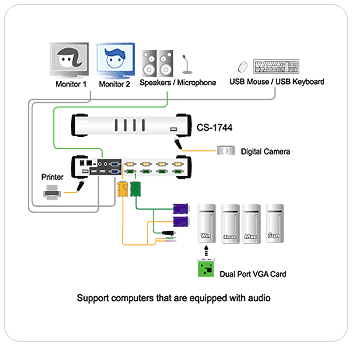

ATEN CS1744 Function Diagram
ATEN CS1744 4-Port Dual-View KVM Switch Function Diagram

ATEN CS1744 4-Port Dual-View KVM Switch Requirements:

  • CONSOLE:
    Monitors capable of the highest resolution that you will be using on any computer in the installation
    1 x USB style mouse
    1 x USB style keyboard
  • COMPUTER:
    1 x VGA, SVGA, or Multisync port
    1 x Type A USB port

ATEN CS1744 4-Port Dual-View KVM Switch Package Content:
1 x CS1744 USB KVM Switch
4 x Custom Audio/Video Cables (6 ft long)
4 x Custom USB/Video Cables (6 ft long)
1 x Firmware Upgrade Cable
1 x User Manual
1 x Quick Start Guide

ATEN CS1744 4-Port Dual-View KVM Switch Specifications:

Case
Width 13.5 in (34.3 cm)
Height 9.0 in (22.9 cm)
Length 20.0 in (50.8 cm)
Case Qty. 5
Computer Connections
Direct 4
Emulation
Mouse USB
Keyboard USB
LEDs
Link 4 x Green
On Line 4 x Orange
Console Connectors
Audio 1 x Earphone Jack Female, 1 x Microphone Jack Female
Flash ROM Upgrade 1 x RJ11 Socket
Mouse 1 x USB Type A Female
Keyboard 1 x USB Type A Female
Monitor 2 X HDB15 Female
Housing
Case Metal
Weight
Package Wt. 6.2 lb. (2.8 kg)
Unit Wt. 5.7 lb. (2.6 kg)
Case Wt. 33.0 lb. (15.0 kg)
CPU Connectors
Monitor USB/Video1: 4 x SPHD-15 Female, Audio/Video2: 4 x SPHD-15 Male
Peripherals 2 x USB Type A female
Operating Temperature 32F~122F (0C-50C)
Port Selection Push button, Hotkey
Storage Temperature -4F~140F (-20C-60C)
Scan Interval 1-99 secs
Power Consumption DC5V, 1.25W
Video Resolution Up to 2048 x 1536, DDC2B
Humidity 0 - 80% RH, NC
Power Adaptor 1 x DC5V Jack
UPC / EAN Barcode icon
UPC 672792151668
EAN 0672792151668
Question: Is the USB for peripherals a 2.0?
Answer: Unfortunately, The peripherals are USB 1.1.

Question: What does it support? dual DVI? dual HDMI? viewport?
Answer: Thank you for your inquiry. The CS1744 supports dual VGA video and would require computers that have dual VGA port video cards.
