Aten CS1784 4-Port USB 2.0 DVI KVMP Switch
CS1784
CS1784 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Num Lock] + [-] | Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter] | Default: None |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] [Ctrl] [Port #] [Enter] | Alternate: None |

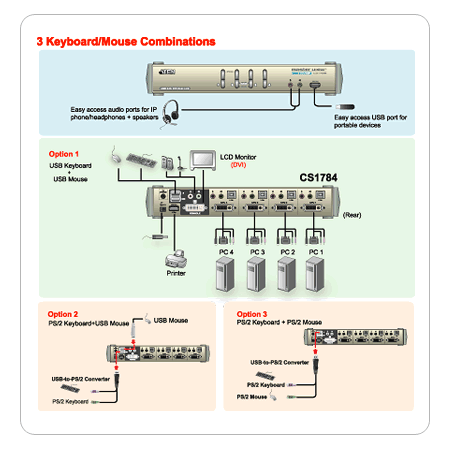

The Aten CS1784 DVI KVMP Switch combines a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as providing an interface for a DVI monitor and audio support.
Aten CS1784 Features:
- One USB console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Full bass response provides a rich experience for 2.1 channel surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with the DVI specifications; also HDCP compliant
- Superior video quality - supports up to 2560 x 1600 (DVI Dual Link)*; 2048 x 1536; DDC2B (DVI-A)
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons and hotkeys
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Display Emulation Technology - the KVM switch reads and remembers the monitor's brand and display information
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation**
- Auto Scan Mode for monitoring all computers
- Firmware upgradeable
- OS Support:Windows 2000, Windows XP/Vista, LINUX, Mac, Sun and FreeBSD
*2560x1600@60Hz (DVI Dual Link);3840x2400@13Hz (DVI Single Link) only supports specific monitor resolution
**1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Aten CS1784 Package Contents:
- 1x USB 2.0 DVI KVMP Switch
- 4x Custom DVI Dual Link 1.8 m Cable Sets
- 1x USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x User Manual
- 1x Quick Start Guide
Aten CS1784 Specifications:
| Mechanical | |
| Height | 2.1 in. (5.5 cm.) |
| Width | 3.4 in. (8.7 cm.) |
| Depth | 11 in. (27 cm.) |
| Weight | 2.07 lbs. (0.94 kg.) |
| Housing | Metal |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Power Consumption | DC5.3V, 9W |
| Console Port Connectors | |
| Keyboard | 1 x USB Type A Female (Black) |
| Video | 1 x DVI Female (White) |
| Mouse | 1 x USB Type A Female (Black) |
| Speaker | 2 x Mini Stereo Jack Female (Green) |
| Microphone | 2 x Mini Stereo Jack Female (Pink) |
| KVM Port Connectors | |
| Video | 4 x DVI Female (White) |
| Keyboard / Mouse | 4 x USB Type B Female (White) |
| Speaker | 4 x Mini Stereo Jack Female (Green) |
| Microphone | 4 x Mini Stereo Jack Female (Pink) |
| Other Connectors | |
| USB Hub | 2 x USB Type A Female (White) |
| F/W upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Power | 1 x DC Jack |
| Switches | 4x Pushbutton |
| LEDs | |
| USB Link | 4 (Green) |
| On Line/Selected | 4 (Orange) |
| Emulation | |
| Keyboard/Mouse | USB |
| Video | DVI-D: 2560 x 1600 @60Hz (Dual Link) 1920 x 1200@60Hz (Single Link) 3840 x 2400 @13Hz (Single Link); DVI-A: 2048 x 1536; DDC2B |
| Scan Interval | 1 - 99 seconds (5 secs. default) |
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton |
Question: I've had the dvi kvmp cs1784 for a few years but it appears to be packing it in. I see it is discontinued. What is the nearest available product?
Answer: Thank you for your inquiry,
The Aten CS1784 has been directly replaced by the Aten CS1784A.
CS1784 vs. CS1784A
CS1784A is an enhanced version of its predecessor CS1784. Functionally both units will act the same - this upgrade is mostly superficial.
Please let us know if there is anything else we can help you with!
Answer: Thank you for your inquiry,
The Aten CS1784 has been directly replaced by the Aten CS1784A.
CS1784 vs. CS1784A
CS1784A is an enhanced version of its predecessor CS1784. Functionally both units will act the same - this upgrade is mostly superficial.
Please let us know if there is anything else we can help you with!
