Aten CubiQ 4-Port HDMI KVM With USB Hub & Integrated Digital Audio
CS1794
Save $85.43
Download the
CS1794 Manual (PDF)
With its unique design and innovative features, the ATEN CubiQª CS1794 HDMI KVMPª Switch with USB 2.0 hub, provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. CS1794 Manual (PDF)
The ATEN CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSyncª technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the home or office, the ATEN CubiQª CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
In the box:
1 x CS1794 USB 2.0 HDMI KVMPª Switch
4 x Custom HDMI KVM Cable Sets
1 x Firmware Upgrade Cable
1 x Power Adapter
1 x USB-to-PS/2 Converter
1 x User Instructions

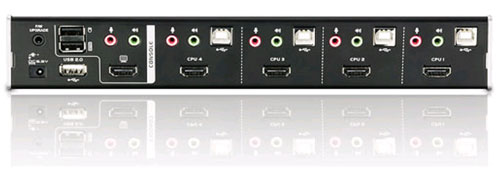

ATEN's CS1794 HDMI KVM Rear Connections
CS1794 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Num Lock] + [-] | Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter] | Default: None |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] [Ctrl] [Port #] [Enter] | Alternate: None |
Features of the CS1794
- One USB console controls four HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux, and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSyncª - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers

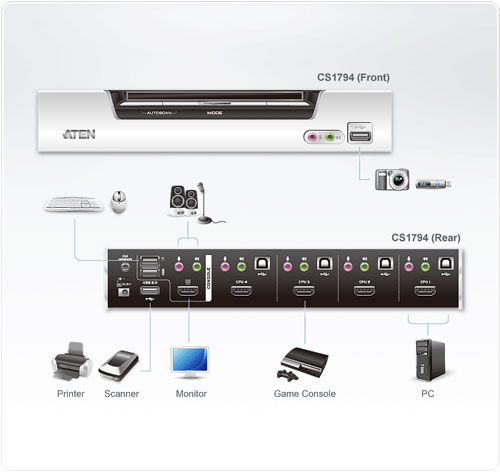

Typical Application Diagram
CS1794 Specifications:
| Mechanical | |
| Width | 10.4 in. (20.50 cm.) |
| Height | 1.77 in. (4.50 cm.) |
| Depth | 2.9 in. (7.3 cm.) |
| Weight | 1.2 lbs. (0.53 kgs.) |
| Computer Connections | 4 |
| Port Selection | Front Panel Pushbuttons, Hotkeys |
| Connectors | |
| Console Ports | Keyboard- 1 x USB Type A Female (Black; rear panel) Video 1- 1 x HDMI Type A Female (Black) Mouse- 1 x USB Type A Female (Black; rear panel) Speaker- 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) Mic.- 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) |
| KVM Ports | Keyboard/Mouse- 4 x USB Type B Female (White) Video- 4 x HDMI Type A Female (Black) Speaker- 4 x Mini Stereo Jack Female (Green) Mic.- 4 x Mini Stereo Jack Female (Pink) |
| Power | 1 x DC Jack |
| USB 2.0 Hub | 2 x USB Type A Female (White: 1x front panel: 1x rear panel) |
| F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Switches | |
| Selected | 5 x Pushbutton |
| LEDs | |
| KVM | 5 (Orange) |
| Audio | 5 (Green) |
| USB | 5 (Green) |
| Emulation | |
| Keyboard/Mouse | USB |
| Video | 1080p (HDMI)/1920x1200 (DVI) |
| Scan Interval | 1-99 secs. (Default: 5 secs) |
| Power Consumption | DC 5.3 V, 3.2 W |
| Environment | |
| Operating Temperature | 0-50C |
| Storage Temperature | -20-60C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
UPC 672792100260
EAN 0672792100260
Question: how long are th (4) KVM cables that are included
Answer: Thank you for your inquiry. Aten reports the cables are 1.8 meters long (about 6 feet).
Question: Hi. Do you ship via the global shipping programme to the UK ?
Answer: Thank you for your inquiry. Unfortunately, we do not. For more information on our international ordering policy, please view the following link: https://www.kvm-switches-online.com/info.html#International%20Orders
Question: What is the MTBF for CS1794?
Answer: Thank you for your inquiry,
Update 2/15/2017 - We have confirmed that the Aten CS1794 has a Mean-Time-Between-Failures of 273,408.2 Hrs.
Aten does not have MTFB information available for the CS1794 at this time - per your request, headquarters is looking into it, and should be able to provide us with that information around end of next week (around 2/17/2017). I will update this post as soon as I hear any update.
