Please note, the ATEN CS221 is discontinued. For replacement or upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654.
ATEN CS221 PC Sharing Devices
CS221 is a PC sharing device which controls the computer sharing function via a high-efficiency microprocessor. It supports 2 users to share the same computer via console keyboard, mouse and monitor.
ATEN CS221 PC Sharing Devices Features :
- Single computer shared by 2 consoles.
- Support VGA, SVGA Multisync monitor.
- No Software required.
- Manual or Auto console selection.
- Screen saver function
- Private Mode for a privileged user.

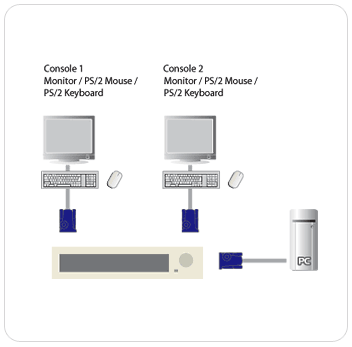

ATEN CS221 PC Sharing Devices Function Diagram
ATEN CS221 PC Sharing Devices Package Content :
1x CS-221 CPU Sharing Device
1x Power Adapter
1x User Manual
| Computer Connections | 1 |
| Shared Functions | Keyboard ,Video ,Mouse |
| Function Keys | Auto / Manual Selection |
| Connectors | Console | Keyboard | 2 x Mini Din-6 Female (Purple) |
| Video | 2 x HDB-15 Female (Blue) |
| Mouse | 2 x DB 9 Pin (Male) /
2 x Mini Din-6 Female (Green) |
| Computers | Keyboard | 1 x Mini Din-6 Female (Purple) |
| Video | 1 x HDB-15 Female (Blue) |
| Mouse | 1 x Mini Din-6 Female (Green) |
| LEDs | Manual | 1 |
| Selected | 2 |
| VGA Resolution | 1024 x 768 |
| Power Consumption | AC 9V 1.8W (Max.) |
| Housing | Metal |
| Weight | 2.65kg |
| Dimensions (L x W x H) | 25.4 x 18 x 8.2cm |
