CAT5 Audio/Video 64x32 Matrix with RS-232 Control

CSW64X32S

$29,999.00$23,375.84
Save $6,623.16
FREE Shipping on orders over $100
smartavi_madeinusa

CATSwitch routes audio and video signals from serveral different video sources out to multiple displays and speakers. CATSwitch is capable of connecting to as many as 64 video sources via transmitters and 32 video displays via receivers with a maximum extension of 1000 feet between the transmitter and receiver units.

Applications

  • Wall Displays
  • Audio Visual Presentation
  • Digital Media
  • Shopping centers
  • Airports
  • Security
  • Dealer rooms
  • Point of Sale
  • Control rooms
  • Hotels

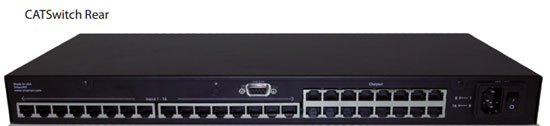

prod back

Features

  • Supports high resolution video up to 1920x1200
  • High quality audio switching
  • Infrared, RS232 and TCP/IP control
  • PC Windows software control
  • Integral UTP distribution
  • 1U rackmounted chassis
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8
  • Maximum extension of 1,500 feet (500m) between the local and remote units
  • HDTV compatible. (720p, 1080i,1080p)
  • 300 MHz bandwidth
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for length

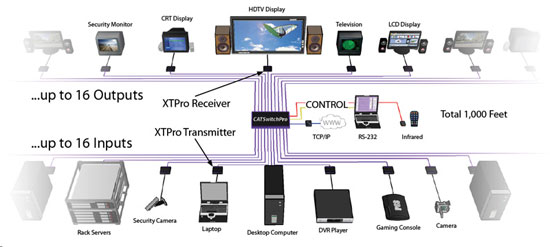

diagram

SmartAVI CATSwitch Specifications

Input/Output 64x32
Mechanical
Height 5.23 in. (13.28 cm)
Width 19 in. (48.26 cm.)
Depth 18 in. (45.72 cm.)
Weight22  lbs.
Video Bandwidth250MHz
Input Signal Level1 Volt pk-pk into 75R
Output Impedance100 Ohms
Input Impedance75R OHms
ConnectorRJ45
FormatVGA/SVG/XGA/RGB
Audio Bandwidth20KHz
