CAT5 Audio/Video and RS232 64x32 Matrix with RS-232 Control

CSWP64X32S

$31,999.00$24,934.29
Save $7,064.71
FREE Shipping on orders over $100
smartavi_madeinusa

CATSwitchPro routes audio, video, IR and RS/232 signals different video sources out to mulitple displays (projectors, monitors, etc) and speakers. CATSwitchPro is capable of connecting to as many as 16 video sources via transmitters and 16 video displays via receivers with a maximum extension of 1,000 feet between the transmitter and receiver units.

Applications

  • Corporate or educational presentations
  • Financial (remote servers/user control)
  • Call center for technical support
  • Industrial (long range workstation isolation)
  • Airport installations (air traffic control/passenger information)
  • KVM extension where exceptional quality of signal is crucial
  • Medical (remote operation away from sensitive/magnetic equipment)
  • Recording (for large studios where editing/mixing stations are compact and/or require complete silence)

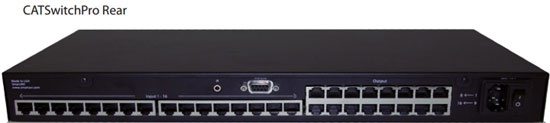

product back

Features

  • Supports high resolution video up to 1920x1200
  • High quality audio switching
  • Infrared, RS232 and TCP/IP control
  • Pass-through IR and RS-232 for remote device control
  • PC Windows software control
  • Integral UTP distribution
  • 1U rackmounted chassis
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8
  • Maximum extension of 1,500 feet (500m) between the local and remote units
  • HDTV compatible. (720p, 1080i,1080p)
  • 300 MHz bandwidth
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for length

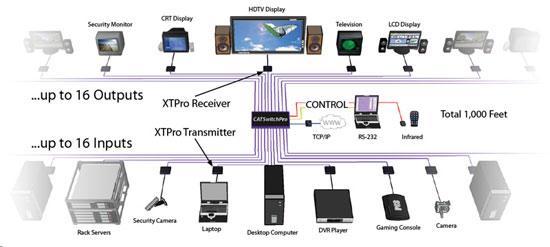

diagram

SmartAVI CATSwitchPRO Specifications

Input/Output64x32
Mechanical
Height 5.23 in. (13.28 cm)
Width 19 in. (48.26 cm.)
Depth 18 in. (45.72 cm.)
Weight22 lbs.
Bandwidth250MHz
Input Signal Level1 volt pk-pk into 75R
Output Impedance100 Ohms
Input Impedance75R Ohms
ConnectorRJ45
FormatVGA/SVG/GA/XGA/RGB
CAT Signals
Pair 1Red video balance 1 V pk-pk + audio left
Pair 2 Green video balanced 1 V pk-pk + audio right
Pair 3 Blue video balanced 1 V pk-pk + sync
Pair 4 Data RS232 and IR
Power Voltage 90-230V
