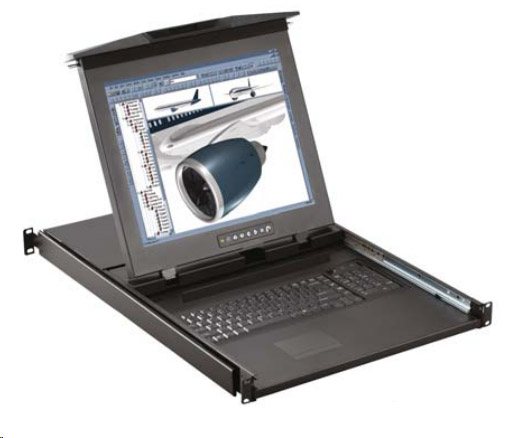

1U Dual Slide 17" LCD & Keyboard Drawer w/ 4-Console 16-Port CAT6 IP KVM

D117-MUIP1614e

$4,383.00$3,842.00
Save $541.00
FREE Shipping on orders over $100

The D117-MUIP1614e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 4-console (1 x local; 2 x remote; 1 x IP), 16 port Matrix Multi-User Cat6 IP KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

"Ne" style keyboard included with D117-MUIP1614e
"Ne" style keyboard included with D117-MUIP1614e

D117-MUIP1614e Features & Benefits:

  • 1U dial slide 17" LCD console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer

Matrix Multi-User Cat6 IP KVM Switch Features & Benefits:

  • 1U dual slide 17" LCD console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer
D117-MUIP1614e Rackmount LCD Diagram
D117-MUIP1614e Rackmount LCD Diagram

D117-MUIP1614e Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Weight27.7 lbs. (12.6 kg.)
LCD Monitor
4:3 Screen Size17" TFT
Native Resolution1280 x 1024
Brightness (cd/m2)250
Contrast Ratio1000 : 1
Viewing Angle (H x V)160° x 160°
Display Color16.7M
Active area (mm)338x270
Signal InputVGA
KVM Switch
KVM Port16 x RJ45 connector
KVM ConnectivityDVI-D / VGA connector dongle up to 40 m (132 ft) via Cat6 / Cat5 cable
Local ConsoleNil for LCD console drawer version
Cat6 Remote Console1x RJ45 via Cat5/Cat5e/Cat6 cable up to 500 ft
DB-15-pin VGA, up to 1600x1200
ExpansionUp to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
PowerMax. 48 Watt, Standby 5 Watt
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory ApprovalFCC, CE
