The Adder AdderView DDX10 is a new breed of high performance KVM Matrix that provides powerful functionality inside a small, compact form factor. Featuring Adder's trusted lossless KVM extension technology with flexi-port switching capability, the DDX enables multiple users to access multiple computers located safely and securely inside your server room. DDX is also available with 30 ports

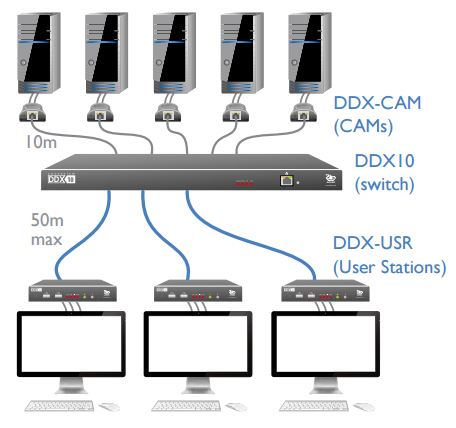

Adder DDX10 Application Diagram

  • 10 configurable user/computer ports
  • DVI, VGA, and DisplayPort dongle options
  • Lossless HD video in real-time
  • Multi-viewer On-screen Display
  • Up to 50m (164 ft) to user console, up to 10m (32 ft) to PC dongle
    *Can be extended further using Adder KVM Extenders
  • USB for Keyboard, Mouse & Touchscreen
  • For use with CAT7 or double shielded CAT6a cables only

Adder DDX10 Back

See Port Configuration

Adder DDX10 Features

  • Adder DDX10 back

    Flexible 10 port KVM Matrix

    AdderView DDX10 is a flexible 10 port KVM Matrix which can be re-configured to match your requirements. Each port can be configured as a computer input or user output. Once configured, simply connect your Computer Access Modules (DDX CAM) and User stations (DDX USR).

  • Adder DDX10 Matrix Diagram

    High density KVM Matrix

    The DDX range features 'zero U' computer access modules and a high density 1U KVM Matrix switch, ideal for installation in heavily populated server racks for small and medium sized applications.


  • Adder DDX10 Multi-Viewer OSD

    Lossless HD video support

    The DDX10 delivers lossless HD video at resolutions of up to 1920x1200 @60Hz providing a real-time, 'at the PC' experience. Frame rate matching makes this product ideal for applications using non standard refresh rates.

  • Adder USB Cable

    Optimal USB technology

    DDX10 emulates a fully featured keyboard, mouse and touchscreens to all computers, maintaining fast switching speeds and instant USB interaction. Support for Windows 8 and above.

  • Adder DDX10 Multi-Viewer OSD

    Multi-view OSD for computer selection

    The unique multi-view on-screen-display (OSD) provides every user with a live preview of permitted computers direct on their screen. Users can highlight their selection using a mouse cursor or touch screen. Once highlighted, the user has the ability to choose from 4 different connection modes.


  • Adder DDX10 User Permissions

    User permissions

    Each user station can be granted different access permissions on a per computer basis. Once computer access is permitted, administrators can select which levels of control will be available, allowing users to choose between View only, Shared, Exclusive or Private connection modes.

  • Adder DDX10 User Station

    Exclusive and private connection modes

    The DDX10 enables users to work safely and securely with a choice of connection modes. In Exclusive mode, users have full KVM control while being able to share video content with other colleagues. By connecting in Private mode, users can work in privacy.

  • Adder DDX10 Dual & Quad Monitor support

    Multi-head video support

    DDX transmitters & receivers can be grouped to form 'Computers' and 'Consoles' that support dual-head & quad-head connectivity. For example, DDX can be used to build a 1 user x 5 computer dual-head matrix.


  • Adder DDX10 Secure web control interface

    Secure web control interface

    System administrators can securely access the DDX10 management tools to configure system settings, set access privileges and control video connections. The interface is secured using HTTPS & administrators must login each time they connect. An API enables switch control from a 3rd party control system.

  • DVI, DisplayPort & VGA CAMs for Adder DDX10

    'Zero U' dongles

    Powered by USB, the digital computer access modules sit in-line and are ideal for racks with limited available space. Modules are available in DVI, VGA, and DisplayPort options.

  • Adder DDX10 Dual-AC redundant power

    Redundant power

    For mission critical applications, DDX10 now supports dual power inlets (Dual-AC). If one source fails, the DDX10 will switch sources to the other power supply, so as not to interrupt normal use of the connected servers.


DDX10 Package Contents

Adder DDX10 Package Contents

  • (1) DDX10 KVM Switch
  • (2) 1U, 19" rack mount brackets and (4) screws
  • (1) Power adapter and US-specific power lead
  • (1) Information wallet containing: Quick start guide and Safety document
  • (4) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Adder DDX10-US Specifications

Mechanical
Height 1.22 in. (31 mm.)
Width 17.13 in. (435 mm.)
Depth6.3 in. (160 mm.)
Weight4.2 lbs. (1.9 kg.)
Rack MountCompact 1U high metal case construction suited for 19" EIA rack mounting (rack mount kit included)
System Connections10 x 8p8c ports for computer and user connections (1 front panel port is dedicated for users).
Maximum of 9 computer connections, minimum of 1 computer.
Maximum of 9 user connections, minimum of 1 user connection.
Peripheral connections1 x 8p8c for 10/100/1000 Ethernet connection
1 x 9way D-type RS232 options port.
Power2 x locking, 3-pin jack (1 x power adapter included), 100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter.
Environmental
Operating Temperature0° to 40° / 32° to 104°
Local client requirementsAny of the following:

Internet Explorer version 10 or 11
Firefox version 24 ESR and above
Chrome version 43.
CAT Cable Extension Distance Details

Only use CAT7 or double shielded CAT6a cables with the DDX10; CAT5 cables may damage the unit and will void the manufacturer warranty.

Recommended cables are CAT7 shielded foiled twisted pairs:

Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable

Resolution (@60Hz)CablePatchesDist
1920 x 1200CAT7050m / 164ft
1920 x 1200CAT7240m / 131ft

*Note:
Distances are achieved using single lengths of trunk/bulk cable with two 3 meter CAT7a patch cables. For each additional break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7a and less than 2 meters. Patch cables over 2 meters must be CAT7a.

ApprovalsCE, FCC

Adder DDX10 is also known as DDX 10, and DDX10-US.

Question: Can you chain / link Adder DDX switches?
Answer: Thank you for your inquiry,

Adder DDX range isn't really designed for linking / chaining of units. While this would be technically speaking possible by taking up 2 ports on each unit & with some software modifications (see below), for larger matrix based applications than DDX we would definitely recommend looking into the Adder INFINITY solution instead which features the ability to create an unlimited end-point matrix.

Hardware Connections:
You can have a DDX-USR from one of the switches connected to a DDX-CAM from the other and vice versa. You won't be able to be directly connect one switch to the other but via this back to back method of USR to CAM module then you could achieve this.

Adder DDX10 DDX30 chained / linked / stacked

Software Modifications:
  1. You will need to set a different "OSD Hotkey Modifier" for each DDX switch to prevent clashes in the OSD. Hotkey Modifiers allow you to pull up the On-Screen-Display and switch sources by using different hot key combinations for each switch.
  2. You are also at a risk of creating a loop but you can configure the access permissions for each USR to prevent this.

Again to be honest though, we would not recommend this setup, and Adder would not support this for technical support. Infinity would be a much cleaner solution and will be a lot less of a headache for the end user to actually use as a system without having to remember several keyboard combinations and which switch a source is connected to.


Question: I have two pc's that are sharing 3 monitors. The pc's use DisplayPort out and the Monitors are DVI in. I need a KVM that will switch which pc is driving the 3 monitors. I'm having difficulty finding a setup for this. Can you please point me to the hardware that can switch in either DVI or DisplayPort (ideally DisplayPort).
Answer: Thank you for your inquiry,

You could use this Adder DDX KVM Switch Matrix, which features DVI user stations and DisplayPort source dongles, as a 2-Port Triple-monitor DVI to DisplayPort KVM:*The Adder DDX Matrix allows you to group multiple KVM dongles (transmitters) & User stations (receivers) to form multi-display 'Computers' and 'Consoles', which automatically opens up all the relevant displays when connecting to a source pc.

Please let us know if there is anything else we can help you with!
