Raritan Dominion Dual-feed AC power 32-port secure console server

DSXA-32-AC

$2,695.00

Discontinued
Replaced by: Raritan DSX2-32
Alternative options: Contact Us

The Raritan DSXA-32-AC is a Dual-feed AC power 32-port secure console server which 2 console ports and a 19" rack mount kit.

Dominion DSXA-32-AC is a secure console server for local and remote access to serially managed servers and other serial devices via SSH/Telnet and Web browser. Dominion SX allows access and control of up to 32 devices including: servers, routers, switches, VPNs and power strips. It can scale across hundreds of users and thousands of devices, highly secure, easy to install and simple to use.

The DSXA-32-AC provides one point of control to manage users, serial servers and other IT devices including:

  • Servers & Headless Servers: Sun Solaris, Sun Cobalt, HP-UX, UNIX, Linux Servers, IBM/AIX Servers, Windows 2003 Servers
  • WAN Equipment: ISDN Terminal Adapters, Channel Banks, CSU/DSU, PBS/PABX
  • Networking Equipment: Routers, Ethernet Switches, Ethernet Firewalls, Ethernet Load Balancers
  • Power Control: All serially controlled power strips and UPS

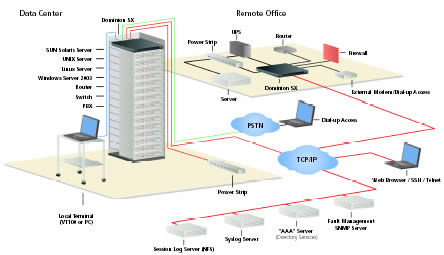

Raritan Console Server Installation Diagram
Raritan Console Server Installation Diagram

Raritan Dominion SX Features and Benefits:

  • Intelligent auto-failover on dual-LAN models
  • Single appliance - No additional software
  • 256KB port buffer
  • Access via web browser/SSHv2/Telnet
  • Standard built-in modem
  • RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
  • Local console port for at the rack access
  • Secure appliance - user has no access to operating system
  • Local and remote buffering/logging
  • Broadest range of supported browsers: IE, Firefox, IE
  • SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
  • Dynamically resizable VT100 windows with dynamic font-resizing
  • Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
  • HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
  • Full modern CLI- GUI equivalence
  • IPMI support- Allows for discovery and management of IPMI enabled servers
  • Port keyword monitor and alert
  • VT220/320/ANSI Support
  • NFS logging
  • Single IP Address for administration and target connection

DSX Security & Authentication:

  • Fully featured firewall
  • Man In The Middle (MITM) attack mitigation
  • TCP port addressing for Telnet and SSHv2
  • Local user groups
  • Flexible strong password support
  • Customizable login & consent banner
  • Enhanced encryption options
  • Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
  • Primary and secondary servers are supported
  • User defined and installable security certificates
  • Target server disconnection option
  • Disabling authentication and authorization
  • Disable local authentication option
  • SSL with RC4 encryption
  • User ID and Password

Raritan DSXA-32-AC Specifications:

Mechanical
Height 1.75 in. (44 mm.)
Width 17.25 in. (438 mm.)
Depth 11.34 in. (288 mm.)
Form factor 1U, rack mountable (mounting brackets included)
Weight 10 lbs. (4.53 kg.)
Environmental
Operating Temperature 32°F (0°C) to 104°F (40°C)
Humidity 20% - 85% RH non-condensing
Altitude Operates properly at any altitude between 0 to 10,000 feet
Power 110/220V auto-switching: 50-60 Hz; 36-72V DC
Remote Connection
Network 10/100 Ethernet (RJ45) port - one or two
Protocols TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP
Modem Connectivity Integrated 56K V.90 (RJ11 port)
Standards
Approved Agency CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A
