DVX-2P Transmitter; supports 2 DVI-D, USB, Audio, RS-232

DVX-2P-TXS

$499.00$388.83
Save $110.17
FREE Shipping on orders over $100
smartavi_madeinusa

The DVX-2P Transmitter can extend up to two DVI-D, USB 1.1, stereo audio and RS-232 signals up to 275 feet using CAT6 cables, while retaining perfectly clear, crisp image and audio quality (image resolution up to 1900 x 1200 at 60Hz)

Applications

  • Medical
  • Educations
  • Military
  • Entertainment

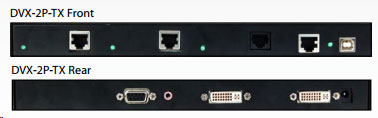

transmitter

Features

  • Top image quality at all resolutions
  • Video resolutions up to 1900 x 1200 at 60Hz (1280 x 1024 at 75Hz) up to 225 feet
  • Internal DCC cables
  • Distance: 275 feet with a CAT6 STP cable
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack mount options (19)
  • Supports up to 2 DVI-D sources
  • Supports USB 1.1 keyboard and mouse
  • Uses easy-to-install, inexpensive pair cable
  • Data recovery for digital video
  • Fully-compliant with USB 1.1 specifications
  • Supports 1.5 and 12Mbps data rates
  • External power adaptors for transmitter and receiver units
  • Fully-transparent (does not use any emulation)
  • Plug-and-play

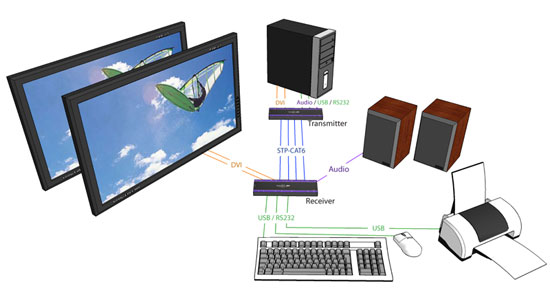

diagram

SmartAVI DVX-2P Transmitter

Mechanical
Height 1.06 in. (2.69 cm)
Width 3.38 in. (8.58 cm.)
Depth10.81 in. (27.45 cm.)
Weight8 lbs.
Input InterfaceDVI-D (Single Link)
Ouput InterfaceDVI_D (Single-Link)
Resolution1920x1200 at 60Hz, resolution up to 1280x1024 min. 75Hz
Supported 480p, 720p, 1080i
Data Rate1.65 Gbps
Audio Bandwidth15MHz, 0db
UPC / EAN Barcode icon
UPC 813280021135
EAN 0813280021135
