DX3000 | |  |  |
Please call 1-877-586-6654 for pricing.
The SmartAVI DX3000 extends the distance between a computer supporting DVI-I
and monitors or projectors. The DX3000 consists of a transmitter unit and a receiver
unit--these two devices enable long-distance transmission of DVI video signals between
a digital video source and a digital display device. The SmartAVI DX3000 is equipped
with DVI-digital (Digital Visual Interface) connectors for a single-link and optional
USB 1.1. The DX3000 receiver is small enough to be attached near a projector. With
the DX3000, the maximum distance between the source and digital display is 330 feet
(100 m) using CAT5 and up to 10,000 ft using fiber optic.

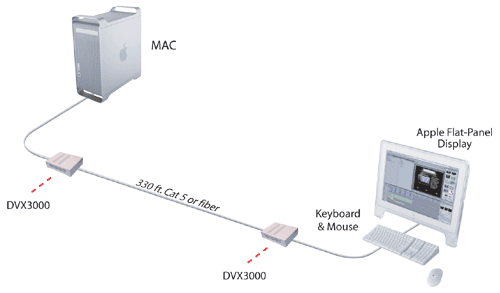

SmartAVI DX3000 Diagram
SmartAVI DX3000 Features and Benefits:
- High image quality at all resolutions
- Supports both VGA and the latest DVI video interfaces
- Supports mixed DVI and VGA operation
- Video resolutions up to 1600 x 1200 @ 60Hz using CAT5 or Fiber Optic Cable
- Local console option (dual access)
- Transparent to USB 1.1
- No length restrictions for particular video resolutions
- Fiber optic extension uses only two fibers
- Compatible with all operating systems
- Compatible with all major KVM switches
SmartAVI DX3000 Specifications:
| Mechanical |
|
| Height |
4.3 cm (43 mm) |
| Width |
17 cm (170 mm) |
| Length |
14.8
cm (148 mm) |
| Power Supply |
Universal Switchmode PSU (90-240V Input) |
| KVM Access |
Single/Dual KVM options |
| Connection Options |
Multi-mode 50/125 50/125µ oder 62,5/125µ,
SC-Connector
Single-mode 9/125µ, SC-connector, Cat5/5e/6 |
| Resolution |
1600 x 1200 @ 60 Hz
All lower resolutions operate up to 75 Hz vertical refresh |
| Keyboard |
PS/2 Microsoft Compatible |
| Mouse |
PS/2 Microsoft Compatible |
| Video Interface |
XGA, SUN, DVI |
| Maximum Distance |
100 m (200 m) Cat5, 200
m (62, 5µ), 400 m (50µ), 10km (9µ |
|
|
|
