Raritan Dominion XRO, 8 Serial Ports, 1 KVM Port KVM Solution

DXRO-81

$2,200.00

Discontinued
Recommended replacement: Raritan Dominon DKSX2-188
Alternative options: Contact Us

The Raritan Dominion XRO solutions are a combination of the Dominion SX and Dominion KX101 switches. The Raritan DXRO-81 is the 8 serial port and power control port DSX and the 1 KVM port DKX101.  The DSX switch packs secure, out-of-band, remote KVM access and control, serial device control and power control in a 1U form factor. The DXRO enables remote management of servers, headless Servers, LAN and WAN equipment, serially controlled power strips, telecom equipment, anything likely to be found in a small office or branch office server closet. Unlike software-based in-band solutions, the Raritan XRO's out-of-band capability assures device access even if the OS fails or the network is down. A built-in modem provides emergency access if the network or internet is down.

When the Raritan DXRO is deployed with Raritan's CommandCenter Secure Gateway centralized management appliance, hundreds of remote sites can be consolidated into a single logical network, with access via a single sign-on to a single IP address, to streamline administration, security and regulatory compliance reporting.

Dominion DXRO-81 KVM-over-IP access is enabled by single-user, single-port devices connected to each target server. With a dedicated channel to each server, the risk of blocking inherent in switched KVM architectures is eliminated. Serial-over-IP access at each site is provided via a 1U, rack-mounted component.

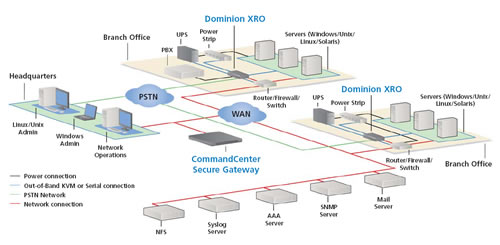

Raritan Dominion DXRO-81 Diagram
Raritan Dominion DXRO-81 Diagram

Raritan DXRO-81 Features & Benefits:

  • Appliance-based architecture for "Plug and Play" operation (no software required)
  • Built-in modem
  • Dedicated power control port
  • Local port for rack access
  • Supports multiple hardware platforms (PS/2, Sun and USB servers)
  • 128 Bit Encryption - SSH & SSL
  • Single, consolidated view of all IT devices (when deployed with CC-Secure Gateway)
  • Single sign-on
  • Idle Timeout and Session Disconnect

Raritan DXRO-81 Specifications:

Mechanical

Serial

KVM

Height 1.75 in. (44 mm.) 4.055 in. (103 mm.)
Width 11.34 in. (288 mm.) 2.193 in. (74 mm.)
Depth 10.7 in. (270 mm.) 1.063 in. (27 mm.)
Weight 5.0 lbs (2.26 kg.) 0.629 lb. (0.286 kg.)
Environmental
Operating Temperature 32°F (0°C) to 104°F (40°C) 0° - 40°C (32° - 104°F)
Humidity 20% - 85% RH non-condensing 20% - 85% RH
Altitude Operates properly at any altitude between 0 to 10,000 ft N/A
Power 110/220V auto-switching: 50-60 Hz AC/DC (100-240V~/6VDC) power adapter
Or Power over Ethernet (PoE)
- Mid-Span Power Insertion
- Signal-Pair Power Insertion
Remote Connection
Network 10/100 Ethernet (RJ45) port - one or two One 10/100 Ethernet (RJ45) port
Protocols TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP

TCP/IP, HTTP, HTTPS, UDP, RADIUS, LDAP, SNTP, DHCP
Modem Connectivity Dedicated modem port N/A
Screen Resolutions
PC graphic mode N/A Up to 1600 x 1200 @ 60 Hz
Sun video mode N/A 640 x 480 @ 60/72/75/85 Hz
800 x 600 @ 56/60/72/75/85 Hz
1024 x 768 @ 60/70/75/85 Hz
1152 x 864 @ 60/75 Hz
1280 x 1024 @ 60 Hz
1600 x 1200 @ 60 Hz

Approvals CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A
