1-port DVI-D EDID Emulator

EDID-Mirror-1PS

$149.00

Discontinued
For upgrade or replacement options: Contact Us

Model: 1 Port

Eliminate the Headache of Display Configuration and Auto-detection with SmartAVI's EDID-Mirror-1P. The EDID-Mirror-1P prevents Windows7, XP and Linux from auto-configuring your display if your computer is started up with the display disconnected or turned off. Certain operating systems, especially Windows 7, have a display auto-detection feature that can reconfigure your display if it is not powered on or connected at startup. This can lead to the frustrating task of reconfiguring your display. The solution is the EDID-Mirror-1P, a DVI-D EDID (Extended Display Identification Data) emulator that provides a constant signal to the computer, regardless of whether the display is present or not. This ensures that the display configuration is not lost.

Smart-AVI EDID-Mirror-1P Features and Benefits:

  • Learn the EDID configuration at once
  • Stores EDID configuration in non-volatile memory so that the unit may be powered off and the configuration will not be lost
  • Display can be disconnected as needed without losing EDID configuration
  • Uses standard EDID configuration standards
  • Compatible with most DVI-D displays and all Windows versions

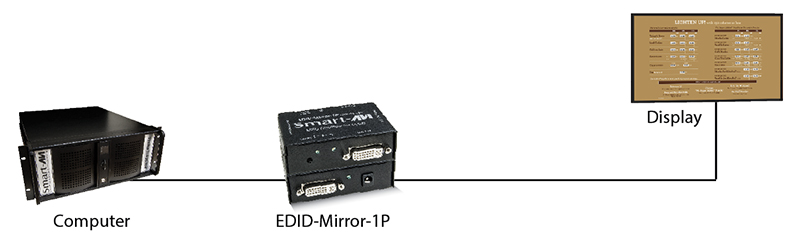

SmartAVI EDID-Mirror-1P Diagram
Smart-AVI EDID DVI Emulator Diagram
(EDID-Mirror-1PS depicted here)

Smart-AVI EDID-Mirror-1P Applications

  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic/Passenger Info)
  • Educational Environments with remote displays

Smart-AVI EDID-Mirror-1P Specifications:

Mechanical
Width3.25 in.
Height1.75 in.
Depth3 in.
Weight0.2 lbs.
ApprovalsUL, CE, RoHS Compliant
Video
ResolutionUp to 1920 x 1200 @ 60 Hz
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input/Output Interface1 x DVI-D 29-pin
DDC5 volts p-p(TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 10 ft.
Output Cable LengthUp to 10 ft.
Audio
Other Interfaces
DDC Signal5 Volts, TTL
TDMS Signal1.2 Volts, TTL
PowerInternal 100-240 VAC/5VDC2A, 10 W
UPC / EAN Barcode icon
UPC 813280021319
EAN 0813280021319
