The Gefen EXT-AUD-148 is a 1:8 Audio Distribution Amplifier which enables you to distribute one audio source to 8 destinations.
You simply connect the 1:8 Audio Distribution Amplifier sender unit to your audio source using the supplied stereo cable that comes with the unit. Up to eight receiver units are connected to your speakers or audio output devices. Each individual receiver (up to eight) is connected to the sender using a CAT-5 cable per channel - from up to 1000 feet away.
Gefen EXT-AUD-148 Features:
- Distributes audio to multiple locations from the same audio source
- Uses industry standard CAT-5e cable to extend the audio
- Rack mountable

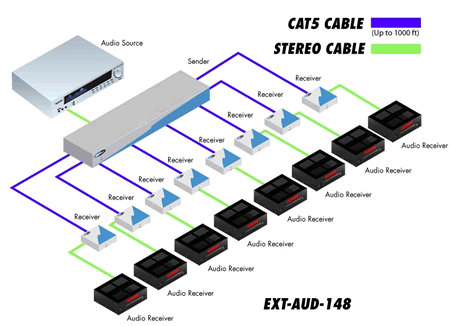

Gefen 1:8 Audio Distribution Amplifier Application Diagram
Package Includes:
- 1:8 Audio Distribution Amplifier Sender Unit
- One 6 foot audio cable
- 5VDC external power supply
Gefen EXT-AUD-148 Specifications:
| Mechanical | |
| Height | 1.75 in. (4.44 cm.) |
| Width | 8 in. (20 cm.) |
| Depth | 4.6 in. (11.7 cm.) |
| Weight | 5 lbs. (2 kg.) |
| Power | |
| Supply | 5V DC |
| Consumption | 10 watts (max) |
| Sample Rate | 5 kHz (min) - 48 kHz (max) |
| Frequency Response | 20hz - 20khz |
| Interfaces | mini-phone stereo 3.5 mm |
