The Gefen EXT-CAT5-1500HD is a CAT5 extender which extends your DVI display and
USB up to 200 feet away from your DVI or HDMI source. The CAT5 1500HD is now available
with a built in 4 port USB hub on the receiver unit.
How the Gefen CAT5 1500HD works:
The sender unit sits next to your computer. The cables supplied with the CAT5
1500HD connects your DVI source and USB to the send unit. The CAT5 1500HD receiver
unit sits next to your DVI display - up to 200 feet away. The display and USB plug
into the back of the CAT51500HD receiver unit. Two CAT-5 cables connect the CAT51500HD-S
and the CAT51500HD-R units to each other.
Note: The CAT5 1500HD is HDCP compliant.

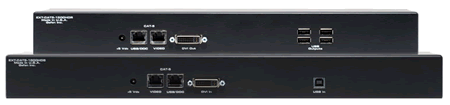

Gefen CAT5 1500HD Extender Backside
Gefen EXT-CAT5-1500HD Features:
- Extends any DVI compliant device up to 150 feet (45 meters) from the computer
at 1920x1200
- Extends any DVI compliant device up to 200 feet (60 meters) from the computer
at 1280x1024
- Extends USB 1.1 compliant devices up to 200 feet
- Uses CAT-5e cable for DDC and control signals
- Video is transmitted digitally for zero signal loss
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
- Supports DDWG standard for DVI compliant monitors
- Includes rack ears
- HDCP compliant
Gefen EXT-CAT5-1500HD Package Includes:
- CAT5•1500HD-S sender unit
- CAT5•1500HD-R receiver unit
- (1) 6 foot DVI to DVI Cable
- (1) 6 foot USB Cable
- (2) 5V Power Supply
- Rack ears
- User's Manual
Gefen EXT-CAT5-1500HD Specifications:
| Mechanical |
|
| Height |
1.75 in. (4.45 cm.) |
| Width |
17 in. (43 cm.) |
| Depth |
4.375 in. (11.113 cm.) |
| Shipping Weight |
10 lbs. (5 kg.) |
| Power |
|
| Supply |
5V DC |
| Consumption |
20 watts (max) |
| Connectors |
|
| DVI Connector |
DVI-I (29 pin) female (digital
only) |
| USB Input |
USB type "B" connector |
| USB Output |
four USB type "A" connectors
|
| Link Connector |
RJ-45 Shielded |
| Input Signal |
|
| Video |
1.2 volts p-p |
| DDC |
1.2 volts p-p |
| Video Amplifier Bandwidth |
1.65 Gbps |
| Single Link Range |
1080P/1920 x 1200 |
