Gefen 1:8 Component Audio Distribution Amplifier
EXT-COMPAUD-148
The Gefen EXT-COMPAUD-148 is a 1:8 Component Audio Distribution Amplifier which distributes one source to eight displays. It also allows anyone who needs to mirror one video with audio source to multiple displays. The 1:8 Component Audio Distribution Amplifier has eight video and audio outputs, one Component input and one Audio input.
Connect your Component video and Audio source to the 1:8 Component Audio Distribution Amplifier's input using the supplied Component with audio cable. Then connect up to eight Component displays to the 1:8 Component Audio Distribution Amplifier. Then, power the 1:8 Component Audio Distribution Amplifier. The Component displays attached to the 1:8 Component Audio Distribution Amplifier must all support the same resolution as the source in order to get a picture.
Gefen 1:8 Component Audio DA Backview
Gefen EXT-COMPAUD-148 Features:
- Connect up to eight component displays at the same time to one component video source
- Support SD (composite, YCbCr) and HDTV (YPbPr, RGsB) input signal
- Maintains 480p, 720p, 1080i, and 1080p resolutions
- Maintains high resolution video - beautiful HDTV resolutions up to 1080p are easily achieved video source at the same time

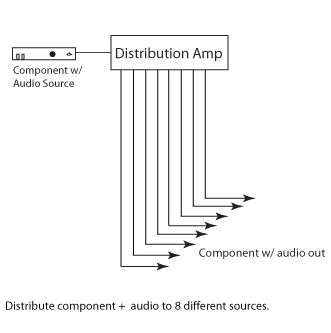

Gefen 1:8 Component Audio DA Application Diagram
Package Includes:
- 1:8 Component Audio Distribution Amplifier
- One 6ft 5 RCA Component Audio Cable
- One 5V power supply
Gefen EXT-COMPAUD-148 Specifications:
| Mechanical | |
| Height | 1.75 in. (4.40 cm.) |
| Width | 17.5 in. (44.5 cm.) |
| Depth | 6.75 in. (17.1 cm.) |
| Weight | 4 lbs. (1.8 kg.) |
| Power Supply | 5V DC |
| Input | YPbPr x1 or RGsB x1 (or RGBHV), or composite x3 1 Vpp@ 75 ohm |
| Output | YPbPr x8, or RGsB (or RGBHV) x8, or composite 3x8 |
| Audio | |
| Audio input | coaxial (S/PDIF) x1 + R/L x1 |
| Audio output | coaxial (S/PDIF) x8 + R/L x8 |
| Analog audio input/output | Audio 2 Vrms max 47k ohm |
| Bandwidth | 480MHz (-3dB) |
| Video Range | 1080p max |
