The Gefen DVI DL Splitter (EXT-DVI-142DL) allows computers with a Dual Link
DVI output to be connected to two or more Dual Link DVI displays at the same
time. It is a flexible distribution hub that can accommodate multiple displays
when two or more DVI DL Splitters are connected together to create a greater
distribution.
The EXT-DVI-142DL DVI DL Splitter is connected with a Dual Link DVI cable from
the Dual Link DVI source to the DVI DL Splitter input. There are two Dual Link
DVI outputs. DVI output 1 is the primary connection and is used for the main
display. DVI output 2 follows the main display.

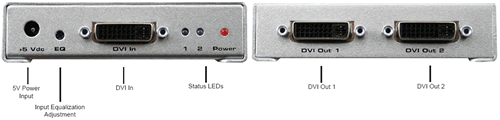

Gefen EXT-DVI-142DL Front & Back Side
Gefen EXT-DVI-142DL Features:
- Splits a Dual Link DVI signal to two or more Dual Link DVI displays
- Uses high quality DVI cables for connections
- Allows simultaneous display
- Supports 720P, 1080i, and 1080P resolutions
- Supports HDCP compliant devices for output one
- Supports DDWG standard for DVI compliant monitors
- Installs in seconds
Gefen EXT-DVI-142DL Package Includes:
- DVI DL Splitter
- One 5V Power Supply
- One 6 ft Dual Link DVI cable (m-m)
Gefen EXT-DVI-142DL Specifications:
| Mechanical |
|
| Dimensions |
5”W x 1”H x 4”D |
| Shipping Weight |
2 lbs (0.91 kg.) |
| Bandwidth |
|
| Video Amplifier |
2 x 1.65 Gbps |
| Power |
|
| Consumption |
20 Watts (max) |
| Supply |
5V DC |
| Range |
|
| Dual Link |
3840 x 2400 |
| Vertical Frequency |
50 - 85 Hz |
| Connector |
|
| DVI Input/Output
|
DVI-I (29 pin) female
(Digital Only) |
