Gefen DVI Fiber Extender Up to 3300 feet
EXT-DVI-FM1000P
The Gefen EXT-DVI-FM1000P DVI Extender uses two small transceivers to extend any HD source using DVI source to a monitor or HDTV display up to 3300 feet (1 km) using one OM3e/OM4 multimode fiber optic cable terminated in an SC connection. Automatic EDID Programming enables quick integration of the HD source to the display. The optical signal transmission provides immunity from electromagnetic interference (EMI).
How It Works:
The Sender module plugs into the HD source. The Receiver module plugs into a monitor or HDTV display. A single strand of multimode SC-terminated fiber optic cable connects the Sender Module to the Receiver module. The maximum length of the multi-mode fiber optic cable will vary based on cable type.
Note: Only the Receiver module requires an external power supply. The Sender module receives power from the HD source. The Sender module may need an external power supply if the HD source does not supply enough power through the DVI connector.
Gefen EXT-DVI-FM1000P Features and Benefits:
- Extends DVI up to 5600 feet (1.7 km) over a single-strand of OM3e/OM4 (50/125µm) multimode fiber optic cable
- Extends DVI up to 4950 feet (1.5 km) over a single-strand of OM3 (50/125µm) multimode fiber optic cable
- Extends DVI up to 3300 feet (1 km) over a single-strand of OM2 (50/125µm) multimode fiber optic cable
- Extends DVI up to 1640 feet (500 meters) over a single-strand of OM1 (62.5/125µm) multimode fiber optic cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- Automatic EDID programming provides continuous connection of source to display
- Sturdy die-cast metal enclosures provide a robust solution for professional and industrial applications
- Compact Sender and Receiver modules provide a clean and easy installation

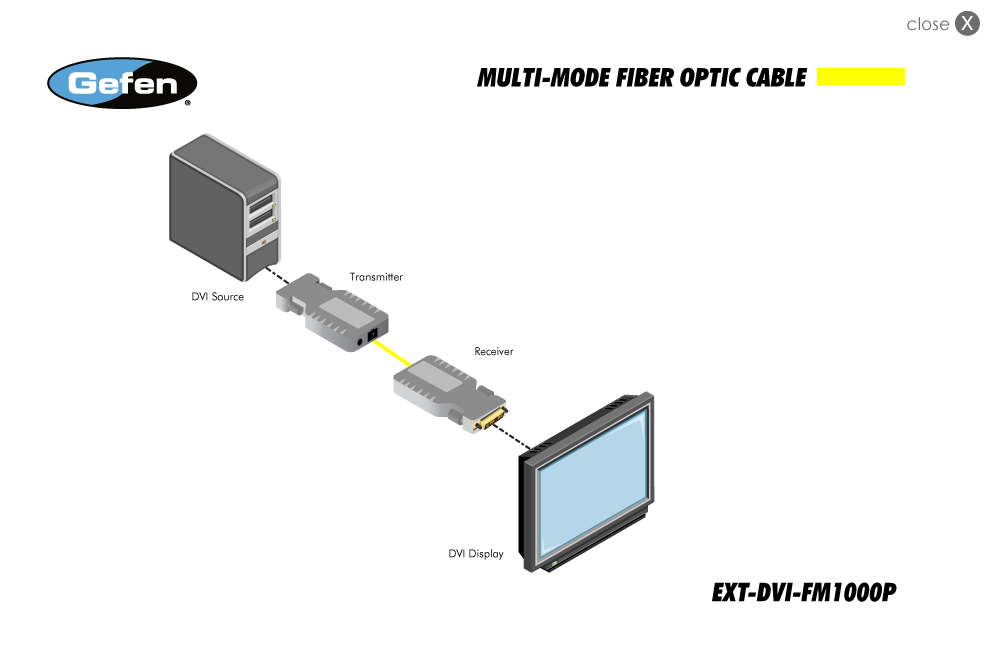

Gefen EXT-DVI-FM1000P DVI Extender Diagram
Gefen EXT-DVI-FM1000P Package Contents:
- 1 EXT-DVI-FM1000P DVI Extender Sender Unit
- 1 EXT-DVI-FM1000P DVI Extender Receiver Unit
- 1 5V DC Power Supply
- 1 Quick Start Guide
Gefen EXT-DVI-FM1000P Specifications:
| Mechanical | |
| Width | 1.6 in. (40 mm.) |
| Height | 0.6 in. (14 mm.) |
| Depth | 2.8 in. (70 mm.) |
| Ship Weight | 1 lbs. (0.45 kg) |
| Power | |
| Power Supply | 5V DC (Receiver) |
| Power Consumption | 2.5 W (max.) |
| Connectors | |
| Video Input | 1 x DVI-D (24-pin), male |
| Video Output | 1 x DVI-D (24-pin), male |
| Link Connectors | 1 x Type SC |
| Electrical | |
| Max Pixel Clock | 165 MHz |
| Environmental | |
| Operating Temperature | 32 - 122 °F (0 to + 50 °C) |
| Storage Temperature | -4 - 158 °F (-20 - 70 °C) |
| Relative Humidity | 10% to 80%, non-condensing |
