Gefen Pigtail HDMI Over Fiber Extender Up to 3300 feet
EXT-HD-CP-FM10
Save $574.30
The Gefen EXT-HD-CP-FM10 HDMI fiber optic pigtail module extender with HDCP support extends HDMI up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable. It supports resolutions up to 1080p Full HD and HD lossless audio formats like LCPM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.
The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend HDMI.
How It Works:
The Sender pigtail end plugs into the HDMI source. The Receiver pigtail end plugs into the HDTV display. Connect a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable from the Sender to the Receiver module. Plug the power supply into the Receiver module and a vibrant Hi-Def picture will appear on your display.
Note: The Sender module does not need to be powered externally unless the source does not supply enough power through the HDMI connector. 62.5/125µm (OM1) fiber may also be used at reduced maximum range of up to 1000 feet (300 meters).

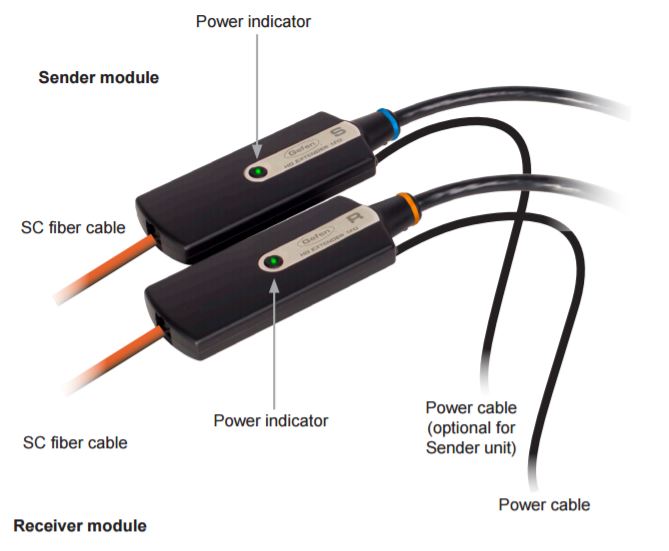

Gefen EXT-HD-CP-FM10 Extender Layout Overview - See Detailed Layout
Gefen EXT-HD-CP-FM10 Features and Benefits
- Extends HDMI up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable
- Supports resolutions up 1080p Full HD
- Supports HD lossless audio: LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Pigtail design relieves stress and clutter on the source and display connector panels
- 3DTV pass-through
- DDC bidirectional support
- HDCP pass-through
- Supports Deep Color
- Compact Sender and Receiver modules provide a clean, easy installation
- FCC and CE compliant for EMI/RFI emission
Gefen EXT-HD-CP-FM10 HDMI Extender Diagram

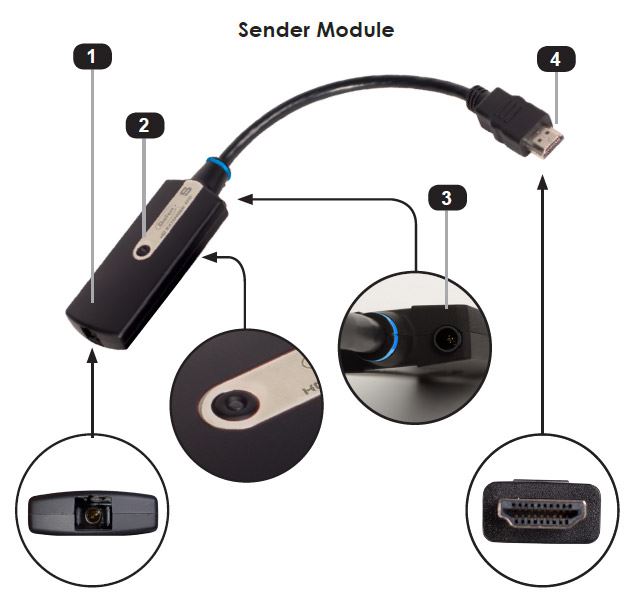

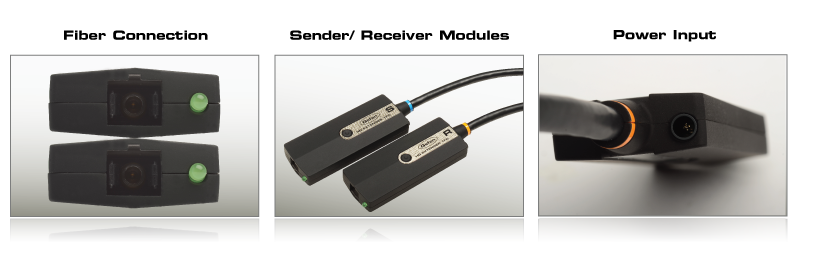

Gefen EXT-HD-CP-FM10 Layout
| Sender | Feature | Description |
|---|---|---|
| 1 | Fiber optic connector | Connect an SC-terminated fiber optic cable from this connector to the fiber optic connector on the Receiver pigtail module. |
| 2 | Power Indicator | This LED will glow bright green when the Hi-Def source is supplying sufficient power to the Sender module. If the LED flashes green, then the source is unable to power the Sender module. See 'Power Indicators' section of the manual for more information. |
| 3 | Power receptacle | If the Hi-Def source does not supply enough power to the Sender module, using the HDMI connector, connect a 5V DC power supply (not included) to this power receptacle. |
| 4 | HDMI connector | Connect this end of the Sender pigtail module to the Hi-Def source. |

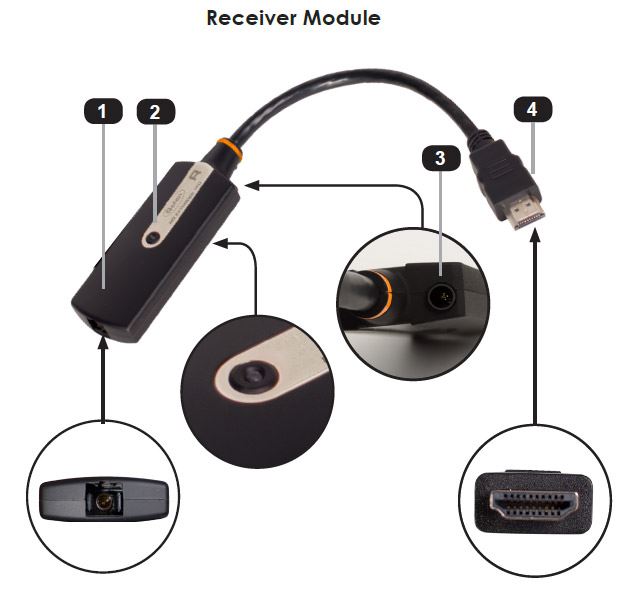

| Receiver | Feature | Description |
|---|---|---|
| 1 | Fiber optic connector | Connect an SC-terminated fiber optic cable from this connector to the fiber optic connector on the Sender pigtail module. |
| 2 | Power Indicator | This LED will glow bright green when the included 5V DC power supplies is connected to the power receptacle on the Receiver module. |
| 3 | Power receptacle | Connect the included 5V DC power supply to this power receptacle. |
| 4 | HDMI connector | Connect this end of the Receiver pigtail module to the HDTV display. |
EXT-HD-CP-FM10 Package Contents
- (1) Fiber Optic HDMI Pigtail Extender Sender Unit (EXT-HD-CP-FM10S)
- (1) Fiber Optic HDMI Pigtail Extender Receiver Unit (EXT-HD-CP-FM10R)
- (1) 5V DC Power Supply (EXT-PS52AIP-1.3)
- (1) Quick-Start Guide (QSG-HD-CP-FM10)
EXT-HD-CP-FM10 Resources
Gefen EXT-HD-CP-FM10 Manual (PDF)
Gefen EXT-HD-CP-FM10 Brochure (PDF)
Gefen EXT-HD-CP-FM10 Specifications
| Mechanical | |
| Width | 1.18 in. (29.97 mm.) |
| Height | 0.47 in. (11.93 mm.) |
| Depth | 10.71 in. (272.03 mm.) |
| Ship Weight | 1 lbs. (0.45 kg) |
| Power | |
| Power Supply | 5V DC (Receiver) |
| Power Consumption | 1.5 W (max.) |
| Connectors | |
| Video Input | 1 x HDMI Type A, 19-pin, male |
| Video Output | 1 x HDMI Type A, 19-pin, male |
| Link Connectors | 1 x SC Type |
| Electrical | |
| Maximum Pixel Clock | 225 MHz |
| Maximum Resolution | Up to 1920 x 1080 (1080p) |
| Environmental | |
| Operating Temperature | 32 - 122 °F (0 to + 50 °C) |
| Storage Temperature | -4 - 158 °F (-20 - 70 °C) |
| Relative Humidity | 10% to 80%, non-condensing |
