The Gefen EXT-HDTV-444N is a 4x4 HDTV Matrix which routes high definition
video in multiple resolutions up to 1080p from any of the four HDTV sources to the
displays. Four outputs gives you the choice of sending high definition video signals
up to four displays. Any four to any four matrix switching allows for maximum versatility
for integrated systems. This HDTV matrix switch eliminates the need to disconnect
and reconnect sources to a display equipped with one input. It works with HD-DVD
players, TiVo systems, HT PCs, and satellite set top boxes that connect to a DVI
display. Every source is accessible at all times by any display by selecting it
with an IR remote.
Gefen HDTV Matrix KVM Switch Backside
How the Gefen HDTV Matrix Switch works:
Connect the sources to the Matrix's inputs. Then connect four displays to the Matrix's
outputs. Once the sources, the matrix and the displays are powered and connected,
you simply select which sources you want view on which displays using the IR remote.

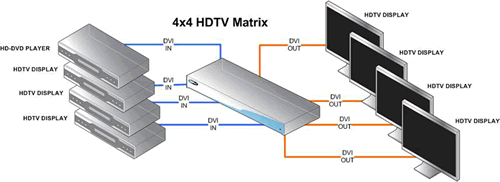

Gefen HDTV Matrix Switch Diagram
Gefen EXT-HDTV-444N Features:
- Switch easily between any four HDTV sources
- Distributes any of the four inputs to any of the four HDTV output displays
- HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x
1200 are easily achieved
- Discrete IR remote (included)
- Serial RS-232 remote port
- Rack ears included
- HDCP compliant
Gefen EXT-HDTV-444N Package Includes:
- 4x4 HDTV Matrix
- RMT-16IR Remote Control
- Four 6 foot DVI cables
- 24V DC Power Supply
- User's Manual
- Rack Ears
Gefen EXT-HDTV-444N Specifications:
| Mechanical |
|
| Height |
1.75 in. (4.44 cm.) |
| Width |
17 in. (43 cm.) |
| Depth |
5.875 in. (14.922 cm.) |
| Weight |
10 lbs. (4.5 kg.) |
| Power |
|
| Consumption |
60 watts (max) |
| Supply |
24V DC |
| Input Signal |
|
| Video |
1.2 volts p-p |
| DDC |
5 volts p-p (TTL) |
| DVI Connector |
DVI-I 29 pin female (digital only) |
| Video Amplifier Bandwidth |
1.65 Gbps |
| Single Link Range |
1080p/1920 x 1200 |
