4K Ultra HD HDBaseT 2.0 Extender w/ Ethernet, RS-232, 2-way IR & Audio, and Bi-Directional POH

EXT-UHDA-HBT2

$799.00$557.44
Save $241.56

End-Of-Life (EOL)
For stock: Contact Us

The EXT-UHDA-HBT2 uses Gefen's implementation of the latest HDBase 2.0 technology to extend HDMI up to 330 feet (100m) at 4K, using one CAT-5e cable. 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495 feet (150 meters). The new HDBaseT 2.0 Colligo platform provides additional features such as 2-way audio extension and ensures an even more robust and resilient connection than the industry standard HDBaseT. Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are supported. Supported HBR formats include Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. Ethernet connection for a Smart TV can be extended from the source side to the viewing location without the need to run a separate cable. RS-232 and 2-way IR are transferred between the Sender and the Receiver to control the A/V source and the display. TOSLINKĻ Optical Digital Audio can be sent from the viewing location back to the source and analog audio can be extended from the source side to the Receiver. Bi-Directional POH (Power Over HDBaseT) technology provides power from the Sender to the Receiver and vice versa, using the same CAT-5 cable that extends the HDMI and control signals. Only one of the two units needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices. The Gefen Syner-GŠ software with its powerful EDID Management capabilities speeds up configuration, performs real-time performance audits via Link Monitoring, and simplifies in-field firmware updates. Low profile, surface-mountable Sender and Receiver units fit in tight places and accommodate Gefen locking HDMI cables for secure connections.

Features and Benefits

  • Extends HDMI, Ethernet, RS-232, 2-way IR, and 2-way Audio over a single CAT-5e
    • 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
    • 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
    • 4K DCI-Cinema (4096 x 2160 @ 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
    • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
    • WUXGA (1920 x 1200 @ 60Hz, 8-bit), up to 495 feet/150 meters
  • HDMI Features Supported:
    • HDMI 2.0 up to 4K 60Hz, 4:2:0, 8-bit color
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • IR extension from Sender to Receiver and from Receiver to Sender
  • TOSLINK Optical Digital Audio extension from Receiver to Sender
  • Analog L/R Stereo Audio extension from Sender to Receiver
  • Bi-Directional POH (Power Over HDBaseT) feature provides power to the Sender or the Receiver unit over the link cable - only one side needs external power
  • Advanced EDID Management via Gefen Syner-G software
  • Link Quality Monitoring via Gefen Syner-G software
  • In-field firmware update via USB, using Gefen Syner-G software
  • Locking power connector
  • Low profile, surface-mountable enclosures

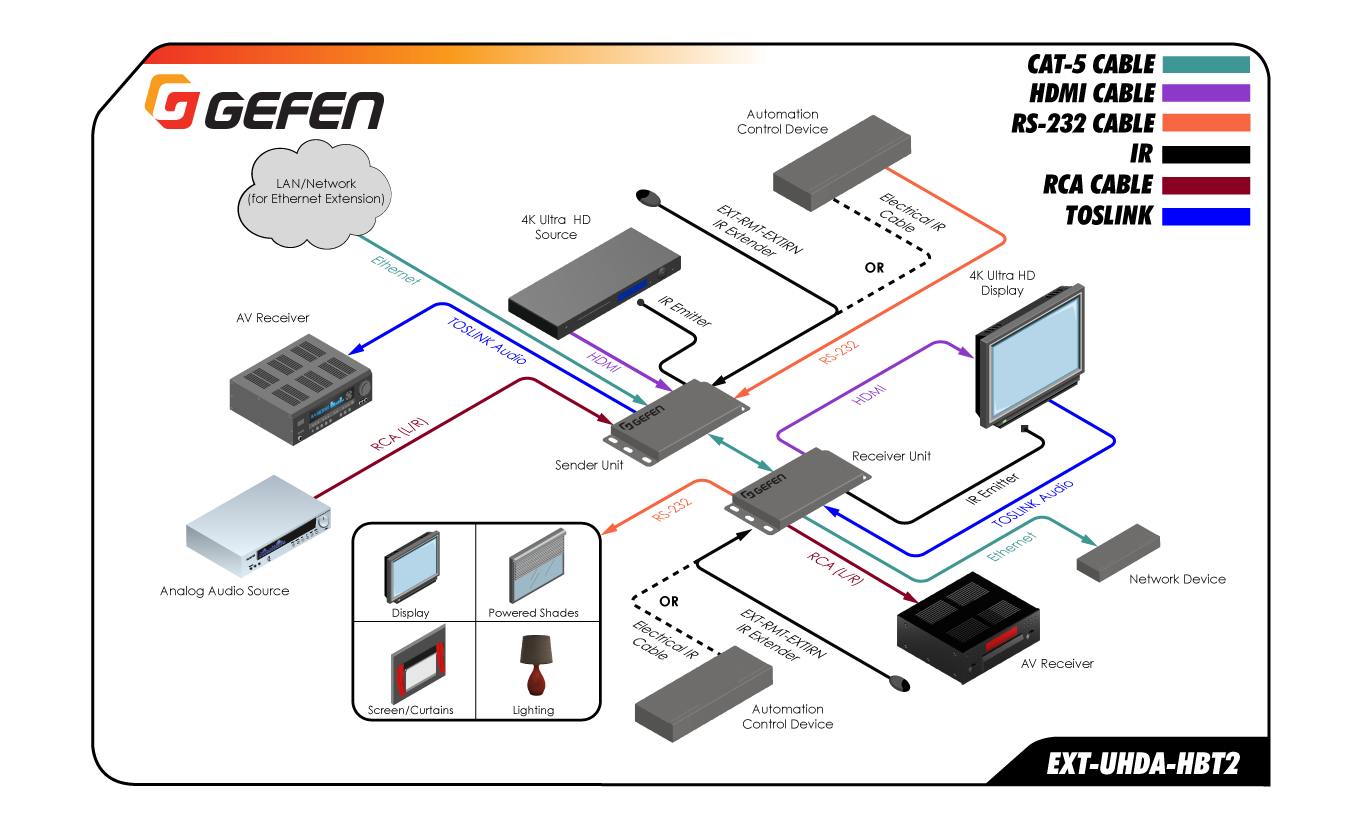

Use Diagram

Note: Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality, but results could vary. Care should always be taken to keep the link cable away from power lines and other sources of electromagnetic interference.

Mechanical
Dimensions (W x H x D)8.4" x 1" x 4" (214mm x 25mm x 100mm)
Weight0.75 lbs (Each, Receiver/Sender)
Function
Max Pixel Clock300 MHz
Input/OutputFemale HDMI Type A
Link ConnectorFemale Shielded RJ-45
EthernetFemale Shielded RJ-45
RS-232 (Sender/Receiver)DB-9 Female/ DB-9 Male
Optical Audio (Sender Out/Receiver In)TOSLINK Female
Analog Stereo Audio (Sender Out/Receiver In)RCA Female
IR3.5mm jack
USBUSB Type Mini-B
Power
Input48V DC, locking
Consumption14W
Environmental
Operating Temp.32 to 122°F (0 to 50°C)
Storage Temp.-4 to 185°F (-20 to 85°C).
Humidity5 to 90% RH (Non-condensing)
MTBF50000 hrs
