Gefen Fiber Optical 4 Port USB 2.0 Hub / Extender
EXT-USB-400FON
The Gefen EXT-USB-400FON is an Optical 4 Port USB 2.0 Hub which supports all USB 2.0 devices, extending to 1640 feet (500 meters) away from the USB source. The receiver end is also a four USB 2.0 hub. By using fiber optic cables, the new Gefen USB 400FO extends a long distance from the location of a computer. It provides an EMI interference-free solution for USB extension work.
How It Works:
The USB 400FO sender unit is connected to the source using the supplied USB short cable. The USB peripheral(s) are connected to the receiver unit at the extended side. Two LC-terminated fiber optic cables are used to link the sender to the receiver.
Note: This equipment is a new version of the discontinued part number, EXT-USB-400FO, and can provide outstanding extension facilities for anything that requires a USB connection over a distance, such as a USB camera or USB hard drive.

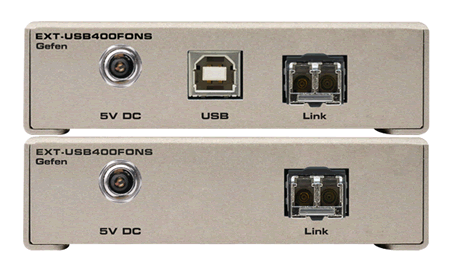

Gefren EXT-USB-400FON Receiver & Sender Back Views
Gefen EXT-USB-400FON Features:
- Extreme USB technology extends the range of USB 2.0 devices up to 1640 meters (500 meters) using fiber-optic cables
- Receiver unit is also a USB 2.0 four-port hub
- Provides support for both low-speed and high-speed USB devices
- Fully backward-compliant with USB 1.1 and USB 2.0 specifications as certified by the USB Implementer's Forum
- Number of devices can be expanded using standard USB hubs
- Supports USB using all operating systems including Windows¨, Mac OS¨, and Linux¨
- Supports other USB peripherals and are used in devices such as PlayStation and WII.
- A very secure method of USB control in areas where environmental conditions prohibit access by people
- Ideal as optical isolation from over-voltage and static electricity
- Supports High Speed devices up to 480mb/s
Package Includes:
- (1) USB 400FOS Sender Unit
- (1) USB 400FOR Receiver Unit
- (1) 6ft A to B USB cable
- (1) 5V DC Power Supply
- (1) User's Manual

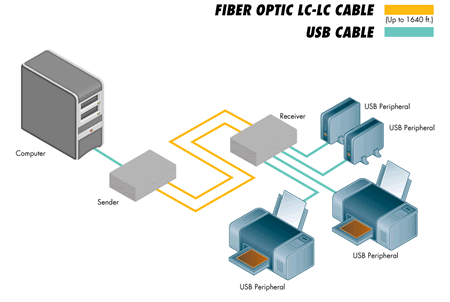

Gefen 4 Port USB 2.0 Hub Application Diagram
Gefen EXT-USB-400FON Specifications:
| Mechanical | Sender | Receiver |
| Height | 1.25 in. (31.75 mm.) | 1.25 in. (31.75 mm.) |
| Width | 4 in. (101.6 mm.) | 4 in. (101.6 mm.) |
| Depth | 3 in. (76.2 mm.) | 3 in. (76.2 mm.) |
| Shipping Weight | 2 lbs (0.9 kg.) | |
| Environmental | ||
| Operating Temperature | 0°C to 50°C | |
| Power Supply | 5V DC | |
| Connectors | ||
| USB Input Connector | type B | |
| USB Output Connector | type A | |
| Link Connector | (2) LC | |
| USB device support | 480Mbps | |
| Range | 1640ft (500m) over 50/125µm Multi-Mode Fiber optic cable | |
UPC 845344097602
EAN 0845344097602
Answer: Thank you for your inquiry and your patience. We have finally received information back from the manufacturer regarding the power consumption of the remote receiver. According to our contact the power consumption for the receiver without external devices is 5V at 600mA (3W).
