Belkin OmniView PRO3 USB & PS/2 16-Port KVM Switch
F1DA116Z
Part # F1DA116Z
List Price:
$499.00
Belkin F1D9400-06 $33.50
Belkin F1D9400-10 $40.00
Belkin F1D9400-15 $60.00
Belkin F1D9400-25 $79.99
Belkin F1D9401-06 $35.00
Belkin F1D9401-12 $50.00
Belkin F1D9402-02 $35.00
Belkin F1D9402-06 $50.00
Belkin F1D9402-10 $75.00
Belkin F1D9402-15 $120.00
Belkin F1D9402-20 $99.25
Belkin F1D9402-25 $140.00
The Belkin F1DA116Z is an OmniView PRO3 16-port USB & PS/2 KVM Switch which
provides server control with extraordinary performance. This 16 port KVM switch enables network
administrators to monitor and control up to four USB- and PS/2-platform servers
from a single console. Designed to grow along with your server network, the Switch
can be daisy-chained together using dedicated daisy chain ports with other OmniView
PRO Series KVM or SMB KVM Switches to support up to 256 servers.
*Note: Cables are not included.
Belkin 16-Port USB & PS/2 KVM Switch Features:
Micro-Cabling Technology reduces cable bulk by 55% when compared to conventional
KVM cabling
USB & PS/2 compatibility gives expanded connectivity in a mixed server environment
Dedicated Daisy-Chain ports let you expand your KVM configuration without
sacrificing CPU ports
Saves setup time and simplifies viewing and switching between multiple servers
with OSD
Provides continuous server monitoring with programmable AutoScan and hot
keys
Ensures consistent compatibility with flash-upgradeable firmware
Also available in 4- and 8-port models

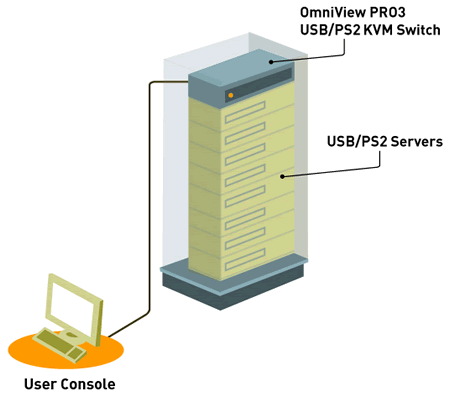

Belkin OmniView PRO3 USB & PS/2 KVM Switch Diagram
Belkin F1D116Z Specifications:
Mechanical
Height
3.5 in. (89 mm.)
Width
17.25 in. (438 mm.)
Depth
7.5 in. (190 mm.)
Weight
12.0 lbs. (5.5 kg.)
Environmental
Operating Temperature
32° to 104° F (0~40° C)
Storage Temperature
-4° to 140° F (20~60° C)
Humidity
0-80% RH, non-condensing
Power
12V DC, 1A power adapter,
center-pin-positive polarity
No. of Servers Supported
16 (256 servers max. via daisy-chaining)
Ports
Direct Port Selectors
16
Flash-Upgrade Port
RJ11
Daisy-Chain Ports
DB25 female
CPU Ports
SCSI-50
Monitor Port
VGA (HDDB15 female)
Daisy-Chain
Maximum of 16 OmniView
KVM Switches
Video
Max. Resolution
Up to 1920x1440 @ 75Hz
Monitors Supported
CRT and LCD (with VGA support)
Input
Keyboard Input
PS/2 (miniDIN6), USB (Type
A)
Mouse Input
PS/2 (miniDIN6), USB (Type
A)
Enclosure
Metal enclosure with high-impact
plastic faceplate
