Belkin 17'' LCD Rack Console with 16-Port KVM Switch, Single-Rail Technology
F1DC116B-SR
The Belkin F1DC116B-SR is a 17" LCD Rack Console with built-in 16-Port PRO3 KVM Switch which enables secure and compact centralized server control. The KVM Switch features dual-port cabling, with cross-platform support for PS/2 and USB servers. With its slim 1U design, the Rack Console fits a standard 19-inch rack and works with any server.
Note: One cable is required for every two servers attached to integrated KVM. KVM Cables are sold separately.
Belkin F1DC116B-SR Features:
- Integrated KVM - Available Belkin OmniView PRO3 KVM switches; 16-port KVM solution within the same 1U of space; scalable to manage up to 256 systems
- Saves space with 1U 19-inch, rack-mount drawer design
- Includes a key-locking mechanism to prevent unauthorized access to console
- Features grade-A, 17" LCD TFT active-matrix, color panel for high quality
- Integrates compact 106-key function keyboard, including numeric 10-key pad
- Designed especially for 4-post racks
- Features adjustable brackets for broadest rack compatibility and ease
- Single-rail design - easy to use, space saving design for maximizing efficiency at the server rack
- Dual-port cabling reduces cable bulk by 55 percent when compared to conventional KVM cabling by connecting two servers per cable
- Wide viewing angle - 115-degree monitor articulation provides superior viewing flexibility
- Universal mounting - adjustable mounting rails accommodate most 19" EIA rack/depth configuration
- USB and PS/2 compatibility gives expanded connectivity in a mixed server environment
- Dedicated daisy-chain ports let you expand your KVM configuration without sacrificing CPU ports
- Ensures consistent compatibility with flash-upgradeable firmware
Package Includes:
- 17" LCD Rack Console
- 12V DC, 6A External Power Supply
- Bracket Kit and Required Hardware
- Quick Installation Guide
- Keys
- User Manual
- DB9-to-RJ11 Serial Flash Cable

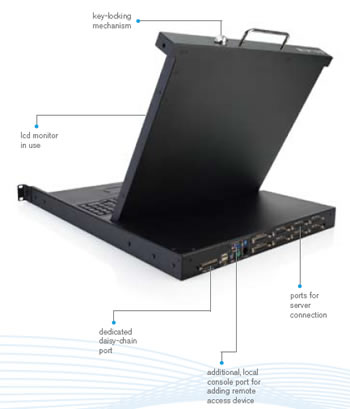

Belkin 17" LCD Rack Console Feature Diagram
Belkin F1DC116B-SR Specifications:
| Mechanical | |
| Height | 1.75 in. (44.5 mm.) |
| Width | 19 in. (482.6 mm.) |
| Depth | 23.5 in. (597 mm.) |
| Weight | 34.1 lbs. (15.5 kg.) |
| Environmental | |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity | 0-80% RH, non-condensing |
| Power | 12V DC, 6A power adapter, center-pin-positive polarity |
| Keyboard/Mouse | |
| Keyboard Type | Laptop style |
| Keyboard/Mouse Connection | PS/2, USB |
| Operating Life of Keys | 8 million cycles |
| Mouse Type | Touchpad style |
| KVM Switch | 16-ports |
| Display | |
| Type | 17" LCD active-matrix color |
| Maximum Resolution | 1280 x 1024 |
| Users | 1 |
| Material/Enclosure | Heavy-duty steel |
| Rail Type | Single-rail technology |
Question: Any idea where I might find a users guide for a Belkin F1DC116B-SR KVM? I has a used one and need to get past the admin login and I figure the users guide will have instructions for how to reset it to factory defaults.
Answer: Thank you for your inquiry,
Here is your requested manual for the F1DC116B-SR KVM console.
The manual does not appear to detail instructions for resetting the security settings to factory default, but see below for instructions we found for resetting the user settings for another KVM switch in the same series, which may be helpful:
"To reset the admin password on a Pro 3 KVM, look on the underside of the unit. There is a small hole through which you can see two (2) contact points on the printed circuit board. Using a piece of wire, connect these two (2) points while the KVM is switched ON. It will beep and reset the user settings. Only one (1) user admin with the password belkin (not case-sensitive) will remain, other users will be deleted.
NOTE: This does not affect other KVM settings, such as computer names and Hot-Keys."
Answer: Thank you for your inquiry,
Here is your requested manual for the F1DC116B-SR KVM console.
The manual does not appear to detail instructions for resetting the security settings to factory default, but see below for instructions we found for resetting the user settings for another KVM switch in the same series, which may be helpful:
"To reset the admin password on a Pro 3 KVM, look on the underside of the unit. There is a small hole through which you can see two (2) contact points on the printed circuit board. Using a piece of wire, connect these two (2) points while the KVM is switched ON. It will beep and reset the user settings. Only one (1) user admin with the password belkin (not case-sensitive) will remain, other users will be deleted.
NOTE: This does not affect other KVM settings, such as computer names and Hot-Keys."
