Belkin 4-port Advanced Secure Dual-Head DVI-I KVM Switch

F1DN104E-3

$1,077.99$929.27
Save $148.72

Discontinued
For upgrade or replacement options: Contact Us

The Belkin F1DN104E-3 Advanced Secure DVI-I KVM Switch offers superior security and data protection for government agencies by providing true data path isolation between systems and networks. The Belkin Secure KVM is fully compatible with legacy and new government systems and is designed, manufactured and certified to the latest NIAP Protection Profile Ver. 3.0 standard. Using uni-directional data paths with optical diodes, the F1DN104E-3 prevents peripherals from being used to leak information from one computer system to another. Additional security is provided through the F1DN104E-3 Advanced Secure end-to-end tamper-proof system that prevents physical tampering, and its intuitive user interface reduces user-switching errors by providing clear identification. The Belkin F1DN104E-3 model supports two monitors and up to four computers.

Belkin F1DN104E Features:

  • Supports 2 monitors and up to 4 computers
  • Dedicated processors with emulators for every port: Isolated port paths for video, audio, peripherals, and smart card readers prevent data leaks between computers
  • Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
  • Display security: Protected display interface prevents data leakage via the monitor
  • Peripheral management: USB device detection prevents unauthorized peripheral usage
  • Anti-tampering: Internal electrical sensors render unit inoperable if opened
  • Multi-platform support: Supports cross-platform systems, including DVI-D, DVI-I, and VGA video interface technologies with Belkin Smart Cables
  • Uni-body chassis: Minimizes entry points and prevents physical tampering
  • Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
  • Customizable port coloring and naming: Facilitates port identification and reduces user switching errors
  • Fast switching: No keyboard or mouse delays when switching ports
  • Easy mounting: Uses an integrated mounting track to allow under-desk or side-wall mounting, creating extra desk space
  • High retention connectors: Semi-locking USB ports prevent accidental disconnection
  • Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
  • Multi-monitor support: Connects two monitors for each system to increase user productivity
  • Common Criteria Validated to NIAP Protection Profile 3.0

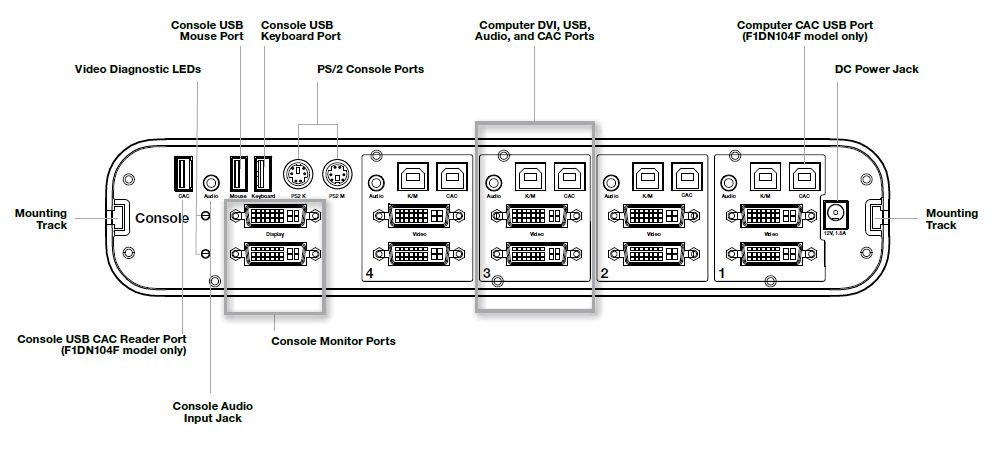

Belkin F1DN104E Backend
Belkin 4-port Advanced Secure KVM Switch Back View
(F1DN104F-3 depicted here)

Belkin F1DN104E Requirements:

  • Console
    • DVI-D Single-Link or Dual-Link compatible monitor
    • USB or PS/2 keyboard and mouse
    • Audio cable (optional)
  • Computers
    • DVI-D Single-Link or Dual-Link compatible graphics card and port
    • VGA compatible monitor (optional)
    • USB ports
    • Audio port (optional)

Belkin F1DN104E-3 Package Content:

  • 1 Belkin F1DN104E-3 Secure DVI-I Dual-Head KVM Switch
  • 1 12V 1.5A DC Power Supply and Power Cord
  • 1 Set Interchangeable Port Color Chips (Multiple Colors)
  • 1 Set Port-Naming Labels
  • 1 User Manual

Belkin F1DN104E-3 Specifications:

MechanicalUnit
Height 2.5  in. (6.35 cm.)
Width 12.5 in. (31.75 cm.)
Depth 6.24 in. (15.75 cm.)
Weight 5.1 lbs. (2.3 kg.)
Environmental
Operating Temperature32-104 F (0-40 C)
Storage Temperature

-4-140 F (-20-60 C)

Humidity

0-80% RH, Non-condensing

LEDs
On Line/Selected4
Port SelectionFront Panel Pushbuttons
Video Resolution3840x2160 (UHD 4K) @ 30Hz,
2560 x 1600 @ 60 Hz
Power Consumption12V DC, 1.5A
Scan Interval5 seconds default (1-99 secs)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor2 x USB Type A
2 x 6-pin Mini-DIN (PS/2)
2 x DVI-I dual-link
Audio1 x Mini-phone 3.5mm
Computer Connectors4 x USB Type B
8 x DVI dual-link
4 x Mini-phone 3.5mm
Standards
Approved Agency NIAP Protection Profile Ver. 3.0
FCC Class B, CE, UL, ICES
Warranty3 years
Question: Will this KVM switch support or work with a DVI to Display Port (DP) adapter between the switch and PC?
Answer: Thank you for your inquiry,

Absolutely, please see our Video Adapters & Converters page for DVI to DisplayPort adapters.

Some users have reported issues with adapting HDMI to DP, but that is the only conversion issue with DP that I am aware of.

Question: I have two monitors connected one of which is a display monitor and the other a TV Display Monitor mounted on the wall. When we use one classified unit this projects onto both displays at the same time, when we try to use the other it only shows up on the main TV. Can you advise please?
Answer: Thank you for your inquiry,

We are sorry to hear of the issue you are experiencing. This could be caused by a variety of issues including faulty cables, the screen settings in the OS -the source could be set to display on one screen only instead of in "Extended Mode"-, a compatibility issue with the TV display and a HDCP source, etc.

Belkin has a KVM support line available at 1-800-282-2355 where they can help you walk through and troubleshoot your application.

Please let us know if there is anything else we can ever help you with!

Question: Will this KVM switch support splitting the DVI outputs to extend the diplays beyond 2 monitors?
Answer: Thank you for your inquiry,

Absolutely, any KVM switch based on DVI or HDMI digital video standards should have no issues with compatibility when using a video splitter on the video output. The only thing I would mention about using DVI splitters or adapters, is to make sure you get a unit that has compatible DVI connectors (DVI-D vs. DVI-I & Single-link vs. Dual-link), and to get a model that supports Dual-link DVI if you need it. Analog VGA based KVMs would likely need an 'active' powered splitter, and DisplayPort KVMs would require to make sure the adapter supports required features.

Please let us know if there is anything else we can ever help you with!
