The IOGEAR G2L1001P is a 6ft PS/2 Bonded KVM cable which allows you to
connect your PS/2 computers to your PS/2 KVM switch. IOGEAR's custom-made cables
are designed to provide the highest signal capacity with the lowest signal loss.
This important technology produces the highest quality video output - even after
long distance transmission or in the most electronically noisy environments such
as server cabinets. IOGEAR's premium custom-made KVM cables guarantee optimum
signal integrity for high-grade server needs. The keyboard and mouse cables are
made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty
video cable for simplified connections.

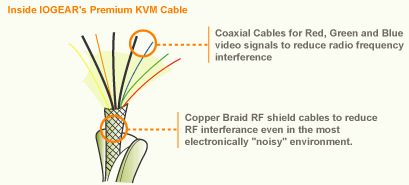

IOGEAR MiniLink KVM Cable Diagram
IOGEAR PS/2 KVM Cable Features:
- Custom made for superb signal quality
- Neat and tidy layout - no tangled cable mess
- Double-shielded 22 gauge keyboard and mouse cables and a UL-2919 video cable
IOGEAR G2L1001P Specifications:
| Mechanical |
|
| Length |
6 ft. (1.83 m.) |
| Weight |
1 lbs. (0.45 kg.) |
| CPU Connectors |
|
| Mouse |
6 pin mini-DIN Male |
| Keyboard |
6 pin mini-DIN Male |
| Monitor |
15 pin HDB Male |
| KVM Side Connections |
|
| Keyboard |
6 pin mini-DIN Male |
| Mouse |
6 pin mini-DIN Male |
| Monitor |
15 pin HDB Female |
| Requirements |
Computers with PS/2 and VGA connections. |
