The IOGEAR Micro-Lite G2L5003P is a 10ft. All-in-One bonded PS/2 KVM cable
which is designed to deliver superb video quality and error-free transmission
for your high-resolution applications. These KVM cables feature the latest in
design and technologies such as Micro-Lite cable technology, an aluminum shield
and an all-in-one bonded structure. They are designed to provide the maximum in
quality, performance, and reliability. The thin, flexible cable and the
over-sized thumbscrews also make installation quick and easy.

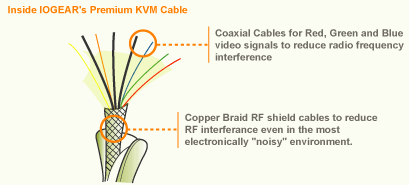

IOGEAR Micro-Lite KVM Cable Diagram
IOGEAR PS/2 KVM Cable Features:
- Innovative Micro-Lite cable technology to minimize
cross-talk and deliver superb video quality for your high resolution
applications
- Aluminum shield to eliminate EMI/RFI interference and ensure
signal integrity and error-free transmission
- Oversized ergonomic thumbscrews make installation quick and
easy All-In-One bonded cable design eases connections, setups and cable
management
- Thin and flexible cable structure saves space and lowers
carrying and storage cost
- UL rated materials used to ensure safety, corrosion
resistance, and longevity of the cable
IOGEAR G2L5002P Specifications:
| Mechanical |
|
| Length |
10 ft. (3 m.) |
| Weight |
1 lbs. (0.45 kg.) |
| CPU Connectors |
|
| Mouse |
6 pin mini-DIN Male |
| Keyboard |
6 pin mini-DIN Male |
| Monitor |
15 pin HDB Male |
| KVM Side Connections |
|
| Keyboard |
6 pin mini-DIN Male |
| Mouse |
6 pin mini-DIN Male |
| Monitor |
15 pin HDB Female |
| Requirements |
Computers with PS/2 and VGA connections.
|
