IOGEAR MiniView DP PC/MAC KVM w/Cables

GCS12DP

$189.95

Discontinued
Recommended replacement: Belkin F1DG102P
Alternative options: Contact Us

IOGEAR MiniView™ GCS12DP Dual Platform KVM Switch - 2 Port MiniView PC & Mac KVM Switch

Managing a multi-platform computer configuration is no small task, which is why we put together the MiniView™ DP package - the marriage of IOGEAR's two-port MiniView™ KVM switch (GCS12DP) and Mac-PS/2 converter. With the MiniView™ DP, your single keyboard, mouse and monitor can be used to control both a Macintosh and a PC. Both devices are compact in design and perfect for convenient desktop placement. Enjoy ultra high resolution, up to 1920 x 1440, thanks to our patented VSE Video Signal Enhancement® technology, while mouse and keyboard emulation ensures smooth port switching every time. IOGEAR's MiniView™ products are all complete KVM solutions, which means you'll find all the necessary cables and adapters for a hassle-free installation.

Cables included!

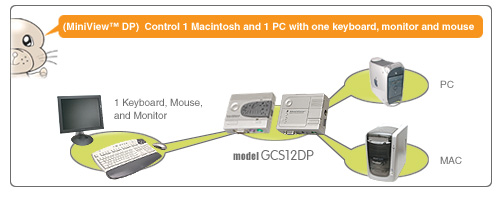

IOGEAR GCS12DP Diagram and Application

IOGEAR MiniView PC/Mac KVM Switch GCS12DP

IOGEAR GCS12DP Features and Benefits

  • Use one keyboard, monitor and mouse to control a Mac and a PC
  • Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+, and other special mice are supported
  • PS/2 Mouse emulation for error-free boot-up
  • Connected PC's can be added or removed from the setup without powering off the KVM switch
  • Plug-n-Play monitor support
  • MiniView™ switches support video resolutions up to 1920 x 1440
  • No software required
  • Built in AutoScan mode
  • Keyboard lock states are stored for each computer
  • LED's allow for easy status monitoring
  • Macintosh keys are remapped on the PS/2 keyboard
  • Built-in surge protections
  • 3 Year Limited Warranty

IOGEAR MiniView GCS12DP

IOGEAR GCS12DP
Easy switching from the selection button VSE: Patented Video Signal Enhancement technology supports ultra high resolution up to 1920 x 1440
MiniView GCS12DP IOGEAR MiniView DP

No DIP switches, software or power supply needed



IOGEAR GCS12DP Requirements

  • PCs with a PS/2 connection for mouse, a PS/2 or AT connection for keyboard, and a HDB15 video display adapter
  • A PS/2 mouse
  • A PS/2 keyboard
  • A VGA, SVGA or MultiSync monitor
  • A Mac with ADB ports

IOGEAR GCS12DP Package Contents

  • 1 MiniView 2-Port KVM switch GCS12
  • 1 MiniView GCV160 Mac-PS/2 converter
  • 2 sets of premium bonded KVM cables
  • 1 ADB male to male cable
  • 1 DB15 male to female cable
  • 1 installation manual
  • 1 quick start guide
  • 1 product registration card

IOGEAR GCS12DP Specifications

Function GCS12DP
Computer Connections
Direct 2
Console Connectors
Keyboard 1x6 pin mini-DIN Female (PS/2)
Monitor 1xHDB15 Female (Std. VGA/SVGA)
Mouse 1x6 pin mini-DIN Female (PS/2)
CPU Connectors
Keyboard 2x6 pin mini-DIN Female (PS/2)
Monitor 2xHDB15 Male (Std. VGA/SVGA)
Mouse 2x6 pin mini-DIN Female (PS/2)
Dimensions
Height 1.5"
Length 8"
Width 3.5"
Emulation
Keyboard PS/2, AT
Mouse PS/2
Housing
Case Plastic
LEDs
Selected 2
Port Selection Push Buttons or Hot Keys
Power
Amps 20mA (Max.)
Voltage DC 5V
Power Consumption DC 5V 20mA (Max.)
Scan Interval 5 seconds
Video Resolution 1920x1440; DDC2B
Weight 44 OZs
