IOGEAR 2-Port Dual-Link DVI KVMP Switch with 7.1 Audio and Cables

GCS1782

$279.95

Discontinued
Recommended replacement: Aten CS1782A
Alternative options: Contact Us

The IOGEAR GCS1782 is a 2-Port Dual-Link DVI KVMP Switch with 7.1 Audio and Cables. ual-Link DVI KVMP.  This unique KVM can increase efficiency and save equipment cost for applications, where high resolution monitors are required: CAD (computer aided design) and CAM (Computer Aided Manufacturing); Desktop publishing and Graphic design; video editing; and gaming, where high video resolution is demanded.

In keeping with the proliferation of high speed devices, the GCS1782 provides two USB 2.0 peripheral ports for asynchronously sharing USB devices between your computers. A powered USB hub may be attached to the peripheral ports for expandability.  The GCS1782 is equipped with the IOGEAR's Display Technology which remembers your monitor's ideal resolution and refresh rate, making it possible to boot all your computers simultaneously, and switch back and forth between computers, while still maintaining the ideal resolution of the monitor.

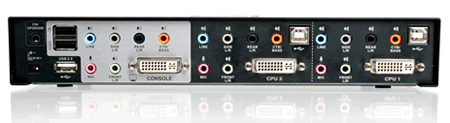

IOGEAR GCS1782 DVI KVMP Switch Back View
IOGEAR GCS1782 DVI KVMP Switch Back View


IOGEAR GCS1782 Features:

  • Share a high resolution monitor between two computers
  • Support monitors with the highest video resolutions:
    • DVI-D Dual link: 2560 x 1600
    • DVI-D Single link: 1920 x 1200
    • Supports Special monitors to 3840 x 2400
  • Share high speed USB peripherals such as printer, scanner, external hard drives between two computers
  • Share a 7.1 surround sound system between two computers
  • Asynchronous hotkey switching between KVM focus, USB peripheral, and Audio ports
  • IOGEAR's Display Emulation Technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Supports MAC keyboard and special keys
  • Full support for DDC, DDC2, and DDC2B monitors
  • Firmware upgradeable\
  • DVI compatible, HDCP Compliant
  • To allow the programmable buttons on you mouse to function, mouse emulation may be disabled
  • Switching "Beep" mutable via hotkeys

NOTE: All cables are included

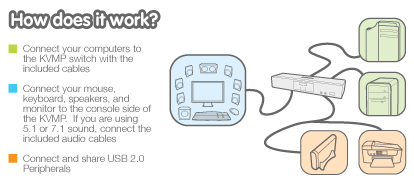

IOGEAR DVI KVMP Switch Application Diagram
IOGEAR DVI KVMP Switch Application Diagram

Requirements:

  • USB Keyboard and mouse
  • Single or Dual Link DVI video card*
  • An available USB port on each computer
  • Optional equipment:
    • Stereo, 5.1, or 7.1 sound card
    • Appropriate speaker system
    • Microphone

*If you wish to connect a VGA output you will need to purchase a third party DVI-I video cable and VGA to DVI adapters. Ensure your LCD monitor will work with an Analog input.

Package Includes:

  • 1 x 2-Port USB 2.0 DVI KVMP Switch
  • 2 x Custom KVM Cable Sets
  • 2 x 7.1 Audio cables
  • 1 x USB-to-PS/2 Converter
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x User Manual
  • 1 x Registration form

IOGEAR GCS1782 Specifications:

Mechanical
Height 1.5 in. (3.81 cm.)
Width 10.25 in. (26 cm.)
Depth 3.0 in. (7.62 cm.)
Weight 2.3 lbs. (1 kg.)
Environmental
Operating Temperature 0~50˚C
Storage Temperature -20~60˚C
Humidity 0~80% RH, Non-condensing
Power
Voltage DC 5.3V
Amps 2.4A
Computer Connections
Direct 2
Port Selection Hotkey, Push Button
Console Connectors
Mouse 1 x USB Type A Female
Keyboard 1 x USB Type A Female
Monitor 1 x Dual Link DVI-I Female
Flash ROM Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Connectors-Audio (console)
Center/Subwoofer 1 x Mini Stereo Jack Female (Orange)
Line In 1 x Mini Stereo Jack Female (Blue)
Line Out 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
Rear Speaker Out 1 x Mini Stereo Jack Female (Black)
Side Speaker Out 1 x Mini Stereo Jack Female (Grey)
CPU Connectors
Keyboard & Mouse 2 x USB Type B Female
Monitor 2 x Dual Link DVI-I Female
Connectors-Audio (CPU)
Center/Subwoofer 1 x Mini Stereo Jack Female (Orange)
Line In 1 x Mini Stereo Jack Female (Blue)
Line Out 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
Rear Speaker Out 1 x Mini Stereo Jack Female (Black)
Side Speaker Out 1 x Mini Stereo Jack Female (Grey)
Peripheral Sharing 2 x USB 2.0 Type A Female
LEDs
Selected 2 (Orange)
USB Peripherals 2 (Green)
Emulation
Keyboard USB
Mouse USB
Video Resolution DVI-D: 2560 x 1600 @60Hz (Dual Link); 1920 x 1200 @60Hz (Single Link); 3840 x 2400 @13Hz (Single Link); DVI-A: 2048 x 1536; DDC2B
Scan Interval 1-99 sec (5 sec default)
Housing
Case Metal
Question: Updated drivers for windows 10?
Answer: Thank you for your inquiry,

The GCS1782 has been designed to be driver-free and according to Iogear should work with Windows 10 without any drivers.

As far as firmware goes, the GCS1782 does not have any updated firmware available beyond what was originally included in the switch.

If you have Iogear part number GCS1782G (TAA compliant version), you can find the updated firmware here, but please note, that driver will not work with the standard GCS1782 version.
