GefenToolBox Extender for HDMI 3DTV Black

The GefenToolBox GTB-HDMI-3DTV-BLK is an Extender for HDMI 3DTV which extends HDMI including multi-channel digital audio at resolutions of up to 1080p 60 Full HD up to 330 feet (100 meters) away from any Hi Def source using one CAT-5 cable for the extension. This product also provides an IR back channel to control AV sources using the same CAT-5 cable extension. Using this channel with the optional RMT IR Extender (sold separately), simply point an IR remote(s) of the A/V device towards the display to control Hi-Def sources as if they were located in the same room or proximity to the display.

How this Gefen HDMI Extender works:

Locate the GefenToolBox Extender for HDMI 3DTV Sender unit next to a set-top box or Blu-ray player source. Use the HDMI cables supplied to connect the TV source to the Sender unit. The Receiver unit is located close to the display which can be up to 330 feet away from the Sender unit. The 3D TV display plugs into the back of the Receiver unit. Only one CAT-5 cable connects the Sender and the Receiver units to each other. Multi-channel digital audio is embedded into the HDMI signal (Dolby True HD / DTS Master Audio).

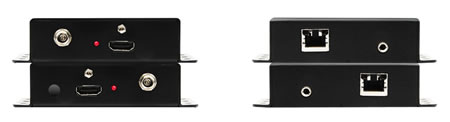

Gefen GTB-HDMI-3DTV-BLK Sender & Receiver Back Views

Gefen GTB-HDMI-3DTV-BLK Features:

• Maximum Resolution: 1080p60
• Extends 3D TV up to 330 feet from Source
• Optional IR Blaster (sold separately) allows IR remote control of source devices from remote viewing location
• Supports high bit-rate audio formats (Dolby TrueHD / DTS Master Audio)
• Fully HDMI and HDCP compliant (when both power supplies are used)
• Locking power connectors on Sender/Receiver units and power supplies for secure connections

• (1) GefenToolBox Extender for HDMI 3DTV Sender unit
• (1) GefenToolBox Extender for HDMI 3DTV Receiver unit
• (2) 6-foot Locking HDMI Cables (M-M; one for input, one for output)
• (2) 5V DC Locking Power Supplies
• (1) User's Manual

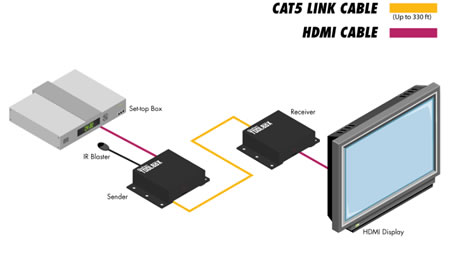

Gefen Extender for HDMI 3DTV Application Diagram

Gefen GTB-HDMI-3DTV-BLK Specifications:
