Wireless for HDMI Extender LR (Through-Walls Solution) - Black

GTV-WHD-1080P-LRS-BLK

$199.00

Discontinued
Replaced by: Gefen EXT-WHD-1080P-LR
Alternative options: Contact Us

Wireless Extender for HDMI 5 GHz LR (Long Range) Wirelessly extend HDMI with multichannel digital audio up to 100 feet (30 meters) The GefenTV Wireless for HDMI Extender LR system sends high definition audio and video to any HDTV display up to 100 feet (30 meters) away. It extends HDMI from computers, set-top boxes, Blu-ray players, and other audio/video sources to a remote HDTV display. It supports HD resolutions up to 1080p Full HD along with support for 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby¨ TrueHD and DTS-HD Master AudioŞ. An IR emitter can be connected to the Sender unit and attached to the IR sensor lens of the Hi-Def source, allowing full control of the source from another room simply by pointing the IR remote at the Receiver unit. The Wireless for HDMI Extender LR transmits through walls and does not require line-of-sight for good reception. Additional features allow multiple Sender units using the included handheld remote control.

 Connect an HDMI cable from the Hi-Def source to the Sender unit. Connect an HDMI cable from the Receiver unit to the HDTV display. Connect the included power supplies to both the Sender and Receiver units then connect the power cords to available electrical outlets. Connect an IR emitter from the Sender unit to the IR device to be controlled. Power-up the source and the display. The "Video" indicators on both units should now glow solid blue to indicate a successful connection between the Sender and Receiver unit. If the Sender and Receiver units do not pair automatically, point the IR remote at the IR sensor window on the Receiver unit and press the Menu button. Navigate through the on-screen menu and have the Receiver unit look for a Sender unit. Press and hold the pairing button on the Sender unit until the Link LED starts blinking. Press the OK button on the IR remote. A message indicating that the Sender and the Receiver units have been paired will appear on the display. Point the source's IR remote at the IR window on the Receiver unit to control the source** that is placed near the Sender unit.

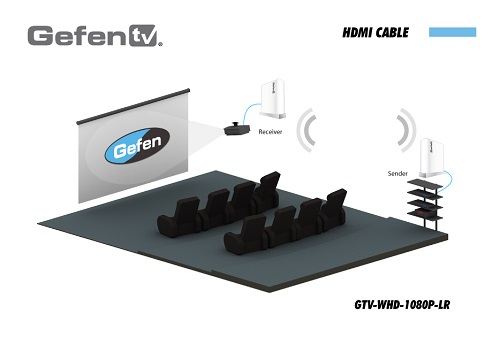

Diagram

diagram

Features:

  • Wireless extension of HDMI up to 100 feet (30 meters)
  • Supports resolutions up to 1080p Full HD
  • HDMI Features Supported
    • LPCM digital audio streams up to 7.1 channels is supported
    • Dolby¨ TrueHD and DTS-HD Master AudioŞ streams up to 5.1 channels are supported
    • 3DTV pass-through
    • HDCP pass-through
    • 12-bit Deep Color
    • Lip Sync
  • No latency
  • AES128 encryption
  • IR Back Channel provides IR control from the viewing location to the source **
  • Up to 8 Senders can be accessed by a Receiver
  • Included IR remote allows switching between three Sender units
  • WHDI 1.0, FCC Part 15, and ETSI-compliant
  • Additional Sender units available separately

Specifications:

  • Frequency Band Range: 5.125 - 5.850 GHz
  • Video Input Connector (Sender): (1) HDMI Type A, 19-pin, female
  • Video Output Connector (Receiver): (1) HDMI Type A, 19-pin, female
  • USB Connector (Sender / Receiver): (1) Mini-B
  • Power Supply (Sender/Receiver): (2) 5V DC
  • Power Consumption (Sender / Receiver): 8W (max.) / 8W (max.)
  • Dimensions (Sender / Receiver) (W x H x D) 5.83" x 0.8" x 3.8" (148mm x 20mm x 96mm)
  • Shipping Weight: 2.8 lbs (1.27 kg)
