IOGear DVI-D Video Extender Kit (CAT 5e/6) w/Stereo Audio

GVE250

$174.95
$139.99
Save $34.96
FREE Shipping on orders over $100

IOGEAR's GVE250 DVI-D CAT5e/6 Extender with Stereo Audio gives you the distance between the 1080p (1920x1080) media source and the HD display unit by you're connecting by up to 130 feet. It consists of a local sending unit and remote receiving unit connected by two standard solid CAT5e/6 twisted pair solid Ethernet cables. Additionally, you can extend up to 200 feet* at 720p resolution.

The GVE250 Extender with Stereo Audio is ideal for home installation, retro-fitting, retail environments, show rooms and large worship centers where remote displays are required. The DVI-D CAT5e/6 Extender with Stereo Audio is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you put the display in an area that is convenient for viewing.

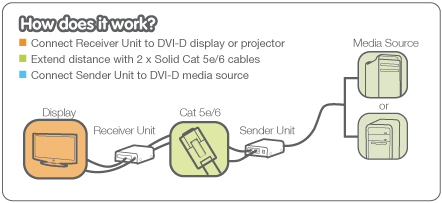

GVE250 Application Diagram

IOGEAR GVE250 Features:

  • Extend your DVI-D audio & video signal through two CAT5e/6 cables
  • Keep digital signage system / computer out of sight and place your DVI display up to 200ft away
  • Up to 130ft for 1080p resolution*
  • Up to 200ft for720p resolution*
  • Supports widescreen formats
  • HDCP Compliant
  • Video Equalization can be adjusted manually
  • Rack mount kit included
  • Metal casing
*Note: Extension range may vary with different devices and CAT5e/6 cables

Warranty: 3-YEAR



IOGEAR GVE250 Specifications:

Cable TypeSolid CAT 5e/6 Cable
Cable DistanceUp to 130ft (40m) 1080p, Up to 200ft (60m) 720p
Connectors
Link2 x CAT5e/6
LEDs
ACT (Activity)1 (Each Unit)
Power On1 (Each Unit)
Video ResolutionUp to 1920x1200
Video
DVI-D(Single Link)Female Connection
Data RateUp to 1.65Gbps
Dimensions
POP Information
10'' Peg Hook7
6'' Peg Hook5
Unit Dimensions
Width3.5in.
Height2.125in.
Depth0.875in.
Unit Package Dimensions
Width6.4in.
Height9.6in.
Depth2.4in.
Master Carton
Width7.4in.
Height4.5in.
Depth15in.
Master Carton Qty.6
Weight
Master Carton Wt.10.35lb
Unit Pack Wt.1.6lb
Unit Wt.1.2lb
UPC / EAN Barcode icon
UPC 881317509079
EAN 0881317509079
Question: Does this device use and power plug or does is get its power over the Cat5 line?
Answer: Yes, this extender is powered via a DC power adapter plug and not over the CATx cable. The Specs for the power adapter are: 5.3V and 940mA.

Question: Can I connect a matrox dual/trippleheadtogo to the receiver for multi display?
Answer: This product will extend DVI-D audio & video signal through two CAT5e/6 cables up to 200 feet away. This is designed to extend a single signal, so that is as much as we can guarantee. Unfortunately, we do not sell the dual/triple head to go, so we are not positive about the compatibility. We recommend contacting the manufacturer of that product to ensure compatibility.
