1U 17" High Brightness LED LCD Console Drawer w/ VGA

H117

~~$2,061.00~~$1,807.00
Save $254.00

Model: 17"

17" 1080P
17"
19"
+ Compare Family

Series	Model
1U LCD Console Drawer
K117	1U 17" 4K
F117	1U 17" 1080p FHD
X117	1U 17" 1920 x 1200
L120	1U 20" 1600 x 1200
W119	1U 19" 1440 x 900 widescreen
RKP117 / RKP119	1U 17" / 19" 1280 x 1024
N117 / N119	1U 17" / 19" 1280 x 1024 with two point lock
RKP7 / RKP9	1U 17" / 19" 1280 x 1024 with optical Mouse

Large LCD
K123	1U 23" 4K
F121	1U 21" 1080p FHD
X124	1U 24" 1920 x 1200

Dual Slide LCD
DK117	1U dual slide 17" 4K
DF117	1U dual slide 17" 1080p FHD
DX117	1U dual slide 17" 1920 x 1200
D117 / D119	1U dual slide 17" / 19" 1280 x 1024
RKP2417K	2U dual slide short depth 17" 4K
RKP2417F	2U dual slide short depth 17" 1080p FHD
RKP2417 / RKP2419	2U dual slide short depth 17" / 19" 1280 x 1024

Ultra Short Depth
K1417	1U ultra short depth 17" 4K
F1417	1U ultra short depth 17" 1080p FHD

Multi-display
MRK-K17	2U dual or triple-display 17" 4K
MRK-F17	2U dual or triple-display 17" 1080p FHD
MRK-19	2U dual or triple-display 19" 1280 x 1024

High Brightness LCD
HF117	1U 17" 1080p FHD high brightness
H117 / H119	1U 17" & 19" 1280 x 1024 high brightness

Sun LCD Solution
S117 / S119	1U SUN solution 17" & 19" 1152 x 900
NS117 / NS119	1U SUN solution 17" & 19" 1152 x 900 with two point lock

Info
Accessories
Related
Questions
Reviews

The H117 is a 1U 17" High Brighness rackmount LCD monitor drawer. CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

Drawer Features and Dispaly Benefits

1000cd/m� brightness for 17" LED LCD
1280 x 1024 native resolution / 16.7M colors
Lower power consumption
High shock & vibration resistance
Minimum EMI emissions
Short depth design of 480mm ( 18.9" )
New enhanced aesthetics with molded front handle
Front USB port for device access ( USB Hub KVM only )
2 post rack mounting available

Optional Configurations (Contact us for availability)

Front USB hub port for device access
DVI-D / HDMI 1.3 (HDCP 1.1) video input
3G / HD / SD-SDI Broadcast-grade input
S-Video + Composite ( BNC )
Audio input & output
DC Power: 12, 24, 48, 125 V DC
Multiple Integrated KVM Switch options

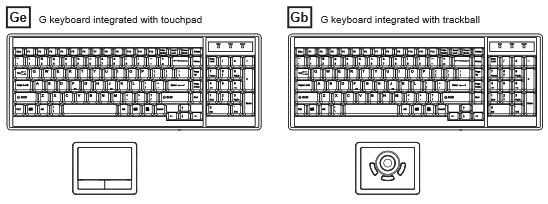

MAC or SUN Micro keyboard options available
2-post rack mounting brackets ( ORB-2.1 )
Touchscreen: Capacitive 1-pt / Resistive 1-pt

H117 Package Contents

(1) H117 Console Drawer
(1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
(1) Power cord
(8) M6 screw, cage nut & cup washer
(1) 2-year standard warranty ( upgradable up to 5 years )

H117 Resources

CyberView H117 Diagram H117 Brochure (PDF)
H117 Manual (PDF)
H117 Integrated KVM Manuals (Link)

H117 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 18.9 in. (44 x 442 x 480 mm.)
Console w/ KVM	1.73 x 17.4 x 22.8 in. (44 x 442 x 580 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)

Net Weight

Single Console	27.5 lbs. (12.5 kg)
Console w/ KVM	30.4 lbs. (13.8 kg)

Gross Weight

Single Console	38.5 lbs. (17.5 kg)
Console w/ KVM	43.3 lbs. (19.7 kg)

Mounting Distance

Single Console	19.3 ~ 28.3 in (490 ~ 720 mm)
Console w/ KVM	19.3 ~ 31.5 in (490 ~ 800 mm)

Console Ports

Video Input

VGA

Video Option

DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL

KB / MS

Combo ( USB or PS2 )

VGA console 6ft cable (CB-6)

Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A

LCD Screen

LCD panel size ( diagonal )

17"

Backlight type

LED

Native resolution

1280 x 1024

Brightness (cd/m2)

1000

Colors

16.7 M

Contrast Ratio (typ)

1000 : 1

Viewing angle ( L/R/U/D )

85/85/80/80

Viewing angle (H x V)

160° x 160°

Response time ( ms )

Dot pitch ( mm )

0.264

Display area ( mm )

337.92H x 270.33V

Surface treatment

Anti-glare

Surface hardness

MTBF (hrs)

50,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30Ω / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30Ω / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 35W / Max. 65W
Power saving mode	Max. 4W / Max. 34W
Power button on	Max. 1W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC & CE certified

Safety

CE / LVD certified

Environment

RoHS2 & REACH compliant

H117 models with Integrated KVM Switch (Contact us for pricing / availability)

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	-	H117-MUIP1613	H117-MUIP3213
1	2	1	-	H117-MUIP1614	H117-MUIP3214
1	1	2	-	H117-MUIP1624	H117-MUIP3224
1	1	0	-	H117-MU1602	H117-MU3202
1	2	0	-	H117-MU1603	H117-MU3203
1	3	0	-	H117-MU1604	H117-MU3204

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	H117-UIP802	H117-UIP1602	H117-UIP3202
1	1	0	H117-U802	H117-U1602	H117-U3202
1	0	0	H117-U801	H117-U1601	H117-U3201

DVI-D KVM	Local User	Extended	IP	12-Port
DVI-D KVM	1	0	0	H117-1201D

Local User	Extended	IP	8-Port	16-Port	32-Port
1	1	1	H117-MIP813	H117-MIP1613	-
1	2	1	H117-MIP814	H117-MIP1614	-
1	1	2	H117-MIP824	H117-MIP1624	-
1	1	0	H117-M802	H117-M1602	-
1	2	0	H117-M803	H117-M1603	-
1	3	0	H117-M804	H117-M1604	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	H117-IP802	H117-IP1602	-
1	1	0	H117-802	H117-1602	-
1	0	0	H117-S801	H117-S1601	-

Local User	Extended	IP	8-Port	16-Port	32-Port
1	0	1	H117-IP802H	H117-IP1602H	-
1	1	0	H117-802H	H117-1602H	-
1	0	0	H117-801H	H117-1601H	-

VGA PS/2 KVM	Local User	Extended	IP	8-Port	16-Port	32-Port
VGA PS/2 KVM	1	0	0	H117-801	H117-1601	-
